Radium Engineering Port Injection Kit Honda Civic Type-R 2017-2021 - 20-0428
Radium Engineering Port Injection Kit Honda Civic Type-R 2017-2021 - 20-0428 - Image 4 Radium Engineering Port Injection Kit Honda Civic Type-R 2017-2021 - 20-0428 - Image 2 Radium Engineering Port Injection Kit Honda Civic Type-R 2017-2021 - 20-0428 - Image 3 Radium Engineering Port Injection Kit Honda Civic Type-R 2017-2021 - 20-0428 - Image 4

Radium Engineering Port Injection Kit for Honda Civic Type-R (2017-2021)

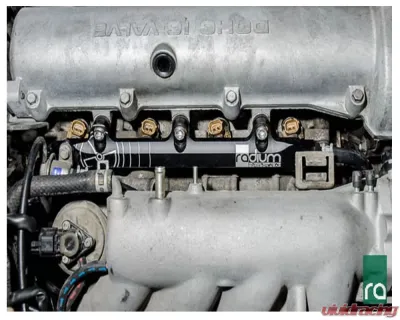

If you're looking to boost your Honda Civic Type-R's performance, the Radium Engineering Port Injection Kit (PIK) is a fantastic option. This kit is designed to seamlessly fit between the intake manifold and the cylinder head, allowing you to add port injectors for that extra fuel your high-horsepower K20C1 engine craves. And don't worry, it works alongside the OEM direct injection system, so you get the best of both worlds!

What's Included in the Kit?

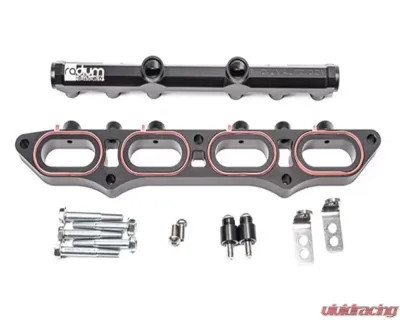

The PIK comes complete with everything you need to get started:

  • PIK adapter plate
  • Custom fuel rail
  • Fuel rail mounting hardware
  • OEM Honda gaskets

And yes, it’s compatible with all fuel types, including popular alcohol mixtures like E85. Talk about versatility!

Fuel Rail Features

The fuel rail boasts a generous 0.63" internal diameter bore, ensuring optimal fuel flow. Crafted from extruded 6063 aluminum, it's CNC machined and laser etched for a sleek, high-quality finish. Each of the four ports comes with 8AN ORB (3/4-16 female) threads. Just a heads-up: the two top fuel rail ports will need to be plugged with part number 14-0150 unless you're willing to modify the plastic OEM wiring harness carrier.

Heat Management

To keep things cool, the kit includes insulating mounting spacers and washers. These ensure that the fuel rail stays isolated from the heat generated by the cylinder head, which can transfer through the mounting bolts. The injectors are positioned at a specific angle, allowing for proper spray into the intake ports—it's all about that perfect fit!

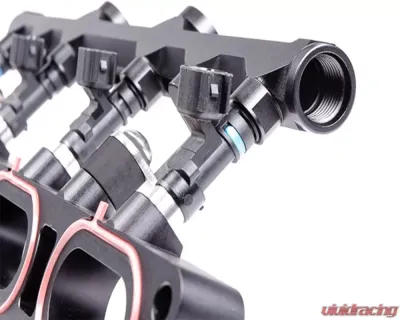

Injector Specifications

This kit is tailored for specific top feed fuel injectors. Make sure your injectors have upper and lower O-ring spacing as shown in the provided images. The O-rings need to be 14mm in diameter for a snug fit.

Fitment

  • Honda Civic Type-R 2017-2021

Ready to take your Civic Type-R to the next level? The Radium Engineering Port Injection Kit is just what you need!

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Radium Engineering Banner

Who is Radium Engineering?

Radium Engineering is a company that was founded in 2010. The company specializes in designing and producing some of the best aftermarket products in the market. They have produced parts used by various racers and motorsport enthusiasts worldwide. Today, they have established a name for themselves and have become a brand synonymous with performance.

Quality in Every Product

All of their products are done in house, from research and development, design and manufacturing. They use the latest computer simulation and modeling tools that allow them to create an accurate and precise model. After all is done, they subject their products to an extensive testing procedure to ensure that it is safe to use and performs the way it is designed to.

Not Your Ordinary Stock Parts

The company focuses on manufacturing race-oriented parts and accessories such as surge tank lines and PCV oil catch can systems. They also offer fuel fittings, fuel manifolds, pumps, and fuel regulators designed for high performance applications. All their parts are made out of high quality materials that can withstand extreme forces.

Purchase Radium Engineering Products At Vivid Racing

If you are in search of a high quality fuel system component for your vehicle, then Radium Engineering is the brand for you. Specifically made for high-performance applications, they are the trusted brand of top racers from different racing disciplines everywhere. To know more about Radium Engineering, visit Vivid Racing and check out their list of products that fit your specific needs.




Warranty

All Radium Engineering brand products are subject to a 1 Year Limited Warranty from the date of original purchase. If a product fails, it will be repaired or replaced at Radium Engineering's option when it has been determined by Radium Engineering to have failed due to defects in materials or workmanship. Warranty claims must be made by the original purchaser. If the purchase was made from a retailer other than radiumauto.com, please contact the place of purchase for further assistance.

This warranty is limited to repair or replacement of the merchandise only and shall not, in no event, exceed the original purchase price. Radium Engineering will not be held responsible for secondary or consequential damages or costs (including labor, towing, etc.) incurred due to failure of this product. Standard ground shipping is used for all warranty transactions. Expedited shipping is available, but the cost difference must be paid by the end user in advance of the shipment.

Warranty claims must ship pre-paid to Radium Engineering for review. Claims must include the failed part(s), RMA number, and original proof of purchase. If the claim is missing any of these items, it may be rejected and returned to sender. Product must be received by Radium Engineering within 14 days of RMA's issue date. Please note that before Radium Engineering can issue an RMA for any product, it is first necessary for the installer or end user to contact info@radiumauto.com to discuss the problem. Most issues can be resolved via email. Under no circumstances should a product be returned or a RMA requested before the above process transpires.

This warranty applies to the original purchaser only and is non-transferable. Improper use, installation, modification, abuse, or unauthorized repairs or alterations voids this warranty. Credit for defective products will be issued pending inspection by Radium Engineering. This warranty does not extend to third party products often used in Radium Engineering products, such as fuel pumps, turbochargers, or any other non-Radium Engineering brand products.
