Radium Engineering Walbro Gss342 255Lph Fcst 3 Surge Tank Pumps And 1 Lift

Since 2010, Radium Engineering has been a game changer in the world of racing with their external fuel surge tanks. These tanks tackle the frustrating issue of fuel starvation that can happen during intense racing conditions. By 2013, they took things a step further by launching the Fuel Cell Surge Tank (FCST), which quickly became the go-to choice for professional racers looking for reliability and efficiency.

What is a Fuel Cell Surge Tank (FCST)?

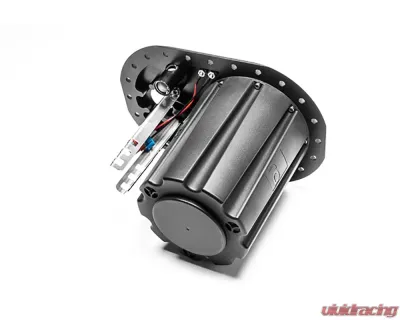

The FCST is a drop-in fuel pump system designed to fit seamlessly into Radium Engineering's popular fuel cells, as well as any fuel cell featuring the standard 6x10 24-bolt fill plate bolt pattern. This innovative system is specifically crafted to protect EFI vehicles from fuel starvation. Unlike other systems that merely trap fuel with baffles, the FCST employs a true dual-chamber design. It combines a single lift pump with up to three surge tank pumps, all neatly housed within the fuel cell. This setup provides all the advantages of traditional external surge tanks without the hassle of complicated plumbing or safety concerns.

Compatibility with Your Fuel Cell

Thinking about installing a Radium Engineering FCST? Here’s what you need to know:

• The fuel cell must feature the standard 6"x10" 24-bolt flange opening.
• The flange opening should be located on the top face of the fuel cell, not on the sides.
• The depth of the cell must be at least 7.7" (196mm) from the outer top face to the internal bottom face.

How Does It Work?

The magic begins with a lift pump that draws fuel from the bottom of the fuel cell and pumps it into a 2L surge tank. Inside this surge tank canister, you can install up to three EFI fuel pumps to deliver high-pressure fuel to your engine. If the lift pump ever runs dry, the surge tank has enough volume to keep the pumps and engine well-fed. Plus, the return from the pressure regulator flows back into the surge tank canister, helping to maintain its fuel level.

As fuel levels change, there are three integrated fill valves at the bottom of the surge tank. These one-way FKM fill valves remain closed until the fuel level in the cell rises above that in the surge tank. When that happens, each valve opens to send 355LPH of fuel (totaling 1065LPH) into the surge tank until equilibrium is reached. Any excess fuel simply flows back into the fuel cell, all happening safely within the confines of the tank.

Standard Fittings

• Pump Out -8AN Male: The outlet port marked "PUMP OUT" uses 7/8"-14 threads, making it compatible with all 10AN ORB fittings. A standard 10AN ORB to 8AN male adapter fitting is included.
• Return -6AN Male: The "RETURN" port is where low-pressure fuel returns from the FPR. This port uses 3/4"-16 threads and is compatible with all 8AN ORB fittings. An 8AN ORB to 6AN male adapter fitting is provided.
• Vent -8AN Male: The "VENT" port is tapped with 1-1/16"-12 threads, compatible with all 12AN ORB fittings. It includes Dynamic Safety Vent (DSV) Valves with a common 8AN male outlet for standard fuel filling.

Selecting Your FCST

The different FCST part numbers correspond to the brand and number of fuel pumps. When choosing your configuration, consider a combination that meets your engine's output requirements.

Features

Radium Engineering has continually refined the FCST, making it a robust and highly functional piece of equipment:

• Merged single 10AN ORB female threaded outlet with check valves to prevent back-flow in multi-pump setups.
• One-way fill valves on the bottom of the canister to keep the surge tank full.
• Multiple pump options, including gerotor, turbine, and brushless DC motor pumps.
• High-current stainless steel electrical studs for reliable pump connections.
• Simplified servicing that eliminates nylon sealing washers and fuel cell retaining brackets.
• Full CNC aluminum construction with anodized surfaces for excellent corrosion resistance.
• Compatible with leaded/unleaded gasoline, methanol, ethanol, E85, and more.
• Dynamic safety vent valve with rollover protection and fuel fill shut-off features.

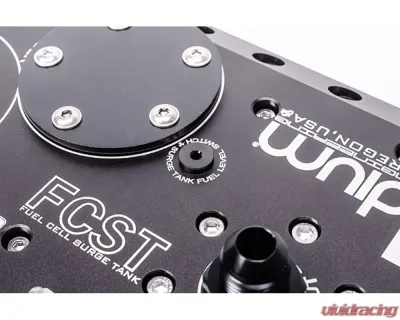

• Optional fuel surge tank level switch and diagnostic LED failsafe port.

What’s in the Box?

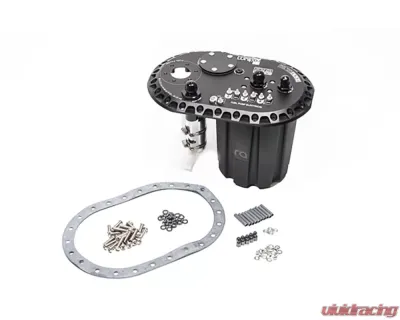

Every FCST configuration comes standard with the following:

• 8AN DSV (dynamic safety vent) valve
• 6x10 24-hole FKM gasket
• 6AN male return fitting (other sizes available separately)
• 8AN male pump out fitting (other sizes available separately)
• Fuel level sensor block-off plate
• Fuel level switch block-off plug
• Three FKM one-way fill valves
• Stainless steel mounting hardware
• Insulated anodized aluminum acorn nuts
• Electrical power wire ring terminals
• Links for compatible fillers (not included), Direct Mount or Remote Mount

Note: This system includes 3 surge tank pumps and 1 lift pump.
