Upgrade your Jeep Wrangler JL with the Rock Krawler JL 3.5" X Factor Mid Arm System, designed for those who crave both on-road comfort and off-road prowess. This complete bolt-in suspension kit offers maximum articulation and exceptional durability, making it a top choice for adventurers.
The adjustable lower control arms provide an impressive 90 degrees of misalignment, eliminating the binding issues found in factory lowers. Meanwhile, the high misalignment adjustable upper control arms allow you to fine-tune your JL's caster for optimal performance.
Experience a lift of 3.5 inches with Rock Krawler's triple rate coil springs, which can clear tires up to 40 inches, depending on your model. These springs not only enhance off-road capability but also improve on-road handling compared to factory linear rate springs. Each system includes correction pads to reduce spring bow and track bar geometry corrections for perfectly centered axles.
Key Benefits:
- Complete bolt-in installation
- Exceptional highway ride quality
- Enhanced off-road performance
- Triple rate coil springs for superior support
- Twin tube shocks for improved damping
- Front and rear spring leveling pads
- Lifetime warranty on all hard parts
- Upgradeable to Rock Krawler JL Long Arm system

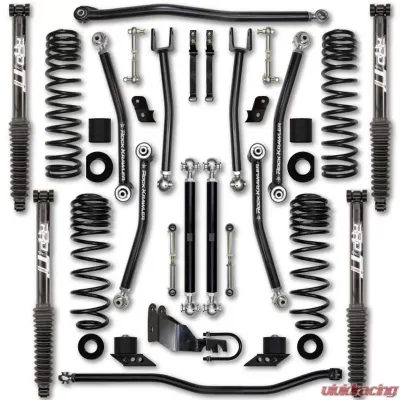

What's Included:
- (4) Triple rate coil springs
- (2) 12.6" travel RRD spec twin tube front shocks (Collapsed Length: 17.3")
- (2) 13.7" travel RRD spec twin tube rear shocks (Collapsed Length: 18.4")
- (2) Front bump stops
- (2) Adjustable lower control arms (front)
- (2) Adjustable upper control arms (front)
- (2) Front spring pads
- (1) Adjustable front track bar
- (2) Sway bar disconnects
- (2) Sway bar link relocation brackets
- (2) Sway bar disconnect straps
- (2) Adjustable lower control arms (rear)
- (2) Adjustable upper control arms (rear)
- (2) Rear spring pads
- (2) Rear bump stops
- (2) Extended rear sway bar links
- (1) Adjustable rear track bar
- (1) Bolt-on rear track bar relocation bracket
Lift Height:
- All lift heights are based on stock Rubicon models
- Sahara adds 0.393 inches of lift over stock configuration
- Sport adds 0.787 inches of lift over stock configuration
Tire Fitment:
For Sport and Sahara with Full OEM Fenders:
- 37 inch tall tires (3 inch bump stop height recommended)
For Sport and Sahara with Trimmed or High Lined OEM Fenders:
- 38 inch tall tires (3 inch bump stop height recommended)
For Rubicon with Full OEM Fenders:
- 37 inch/38 inch tall tires (3 inch bump stop height recommended)
For Rubicon with Trimmed or High Lined OEM Fenders:
- 40 inch tall tires (3 inch bump stop height recommended)
Wheel Fitment:
For Sport and Sahara:
- 37 inch/38 inch tall tires - Recommend 3.5 inches of back spacing
For Rubicon:
- 37 inch tall tires - Recommend 4.5 inches of back spacing
- 40 inch tall tires - Recommend 3.5 inches of back spacing
General Notes:
- All lift heights based on Rubicon models
- A new front C.V. driveshaft is recommended for all front shocks with a max. extended length greater than 29 inches
Customers rave about the JL35XF-2TT's smooth highway ride and impressive off-road capabilities, making it a fantastic addition to their Jeep Wrangler JL. Whether tackling rocky trails or cruising down the highway, this suspension system ensures your ride is both comfortable and capable.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Rock Krawler is a company that specializes in manufacturing aftermarket suspension parts for Jeeps. Offroading is an extreme activity that requires a vehicle that is strong enough to handle the tasks. The factory original parts are good for daily driving, but when it comes to offroading, you need more robust parts and that is where Rock Krawler comes into play. Today, they are one of the leading sources of offroading parts for many Jeep owners.
Parts That Can PerformEach of Rock Krawler’s products is made up of high-quality materials that ensure durability and reliability. It is designed to perform better than its stock counterpart and can withstand the harsh condition of offroading. Their suspension components allow better suspension movement and articulation which is a requirement when you are tackling different terrains and obstacles offroad.
Not Just For OffroadingBut just because their parts are designed for hardcore offroading doesn’t mean that they can’t be used on the streets. That is the beauty of Rock Krawler parts. You can use your vehicle as a daily driver. And when the time comes that you want to hit the trails, just pack your bags and go.
Purchase Rock Krawler Parts At Vivid RacingIf you want to turn your Jeep into a worthy offroad vehicle, then Rock Krawler is the brand for you. They have provided their customers with quality offroad parts for years and have consistently created innovative products that adapt to the ever-changing automotive trend. If you are looking for a Jeep expert company, then you don’t have to go far to find it. To know more about Rock Krawler, visit Vivid Racing and check out their list of offerings that fit your specific need.
