RockJock 4x4 Currectlync JL/JT High Steer Front Trac Bar Relocation and Ram Assist Steering Mount Axle Bracket Jeep Wrangler | Gladiator 2018-2023
$308.00
Free Shipping

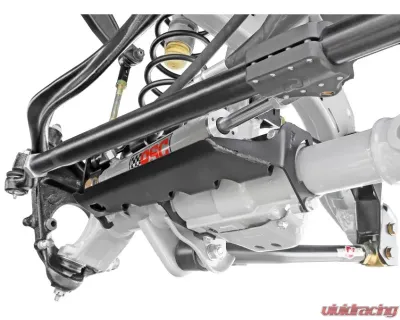

The RockJock® Trac Bar Relocation & Ram Assist Mount Axle Bracket Kit for all Jeep® JL & JT models is designed specifically to be used in conjunction with our High Steer Knuckles. Given the dramatic changes in geometry high steer knuckles impose, this bracket kit is a combination solution that incorporates trac bar geometry relocation to prevent you from incurring any bump steer, a higher relocated sway bar end link mounting point, a hydraulic assist steering ram mount, as well as a lower skid plate to protect your ram from rock bashing! The large axle bracket, as well as the small bracket for use on the driver's side of the axle to relocate the sway bar end link mounting point, easily install, but do require some minor welding. However, both brackets can be mounted solidly enough with the bolts to allow you to drive to a welder if need be. We recommend buying this bracket in our complete RJ-440000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our CE-9120FJL forged, "T-shaped" front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as we have intended.

Kit Includes:

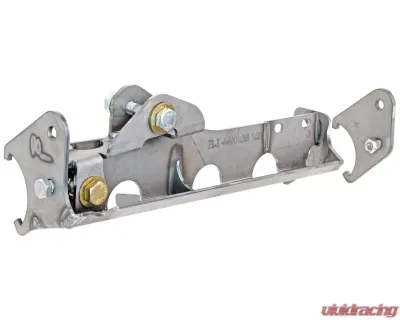

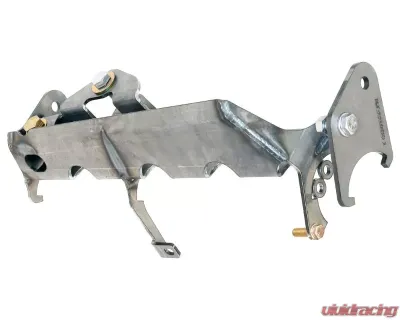

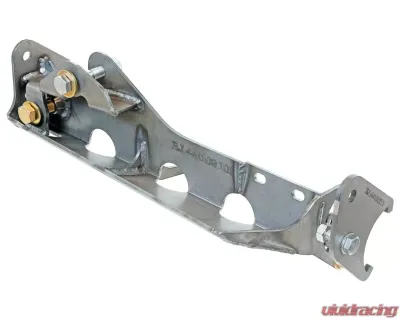

  • Trac Bar & Sway Bar End Link Relocation and Ram Mount (Passenger's Side ) Bracket
  • Sway Bar End Link Relocation (Driver's Side) Bracket
  • All necessary hardware
Fitment Specs.:
  • For use on any factory JL or JT front differential, or any aftermarket replacement axle that features factory specification inner "C" knuckles and up to 3 1/2" diameter axle tubes.
  • Brackets provide new sway bar link mounting holes that are raised 2 1/8" higher than stock (sway bar link lengths must be adjusted to accommodate this).
  • Requires a hydraulic assist steering ram stroke of 7.375" to achieve full potential (factory steering radius)
Fitment:
  • Jeep Wrangler JL 2018-2023
  • Jeep Gladiator JT 2020-2023
Notes:
  • We recommend buying this bracket kit in our complete RJ-440000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done.
  • For optimum performance of this kit, we recommend the use of our CE-9120FJL trac bar and our RJ-107101-101 adjustable bump stop kit.
  • This bracket is intended for use in conjunction with common PSC ram assist steering kits.
