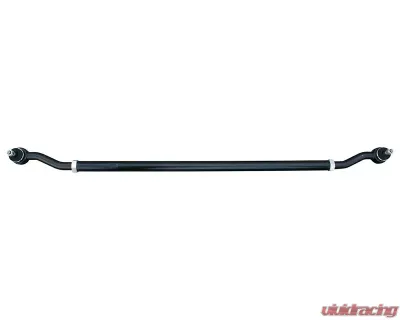

RockJock's completely bolt-on Modular Extreme Tie Rod is commonly referred to as our 2 1/2-ton tie rod. It is adjustable to fit the center of the tapered hole to the center of tapered hole dimensions from 57 1/2 in. to 60 1/2 in. Features include a massive 1 5/8 in. diameter 4130 chromoly heat-treated tube, 1 1/4 in. RH/LH thread forged steel rod ends, 1-ton taper removable rod end cartridges (that may be used in standard or reversed orientation), and premium jam nuts. The right-hand and left-hand threads and jam nuts allow for drag link spec. adjustments after installation without having to remove either end of the drag link from the vehicle.

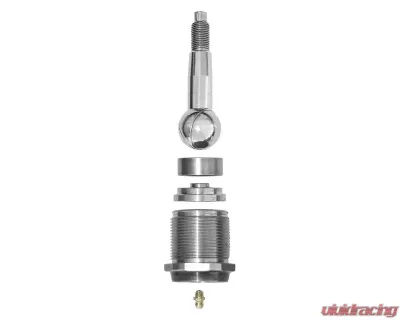

The removable cartridges in the rod end offer many advantages.
- They can be replaced independently of the forged rod end, saving cost
- A spare can easily be carried in the vehicle for trail repairs (carry our JK-9703W wrench with you as well!)
- If a cartridge end is removed and replaced, the vehicle does not have to be realigned, because the tie rod length adjustment was not compromised

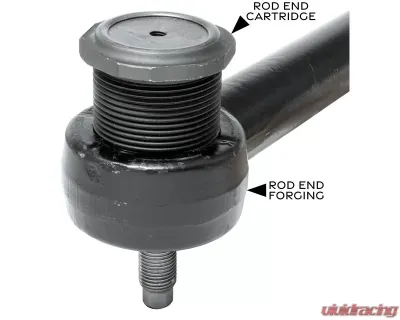

- Cartridges may be easily removed from the rod end forgings and inserted from the top or the bottom, depending upon your mounting preference, and simply tightened back down
This easy-to-install kit is completely bolt-on and requires no modifications or machining to any part of the vehicle! Components are powder coated semi-gloss black so they are ready for installation right out of the box!
Kit Fits:
- Universal Application – 1-ton front differentials w/1-ton taper at the knuckles
- (1) Modular Extreme Tie Rod Assembly
- Closed – 57.500 in.
- Open – 60.500 in.
- Tie Rod Tube = 1 5/8 in. dia. 4130 heat treated chromoly
- Tie Rod End Forgings = 1 1/4 in.-12 RH/LH threads, forged steel

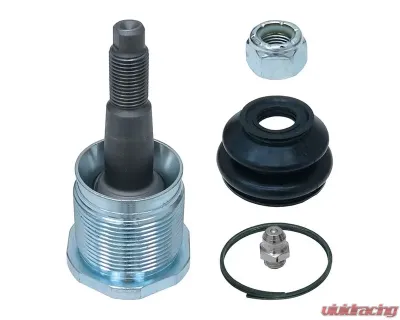

- Rod End Cartridges = 1 ton taper on the pin, 1 3/4 in.-12 threads on the O.D. and 9/16 in.-18 threads on the pin

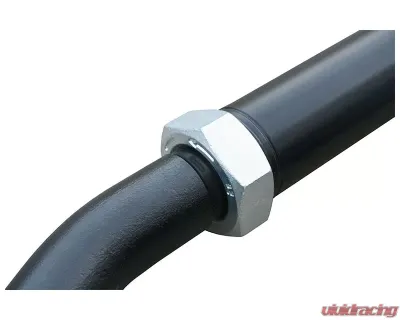

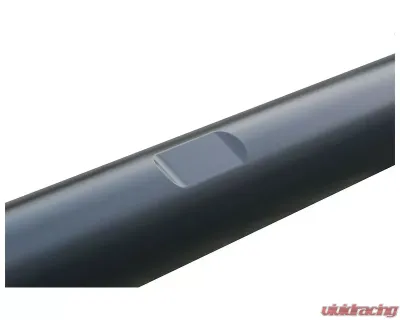

- Wrench flats on the tubes require a 1 1/2 in. wrench, and jam nuts require a 1 7/8 in. wrench
- Rod end cartridges require our JK-9703W wrench or a 2 in. wrench or impact socket
- The universal nature of this tie rod allows it to be used in various applications, granted the dimensions suite. You may simply replace the cartridges with a cartridge of a different taper to suit other applications.
- If you intend to flip the Rod End Cartridges from top to bottom, etc., keep in mind that your knuckle holes are only tapered from one direction. Mounting the tie rod on the opposite side of the knuckle than the knuckle intended will require the tapered holes to be tapered from the other direction.
- Being that this a universal product, you will need to cycle your suspension before use to ensure that the rod ends do not bottom out upon extreme articulation. You do not want your steering rod ends to be your travel stops! Not being mindful of these limitations will cause damage and premature wear to the components that are NOT covered under warranty!
- We offer easy-to-install ram mounting brackets for this tie rod.
- Our JK-9703SB Steering Stabilizer Shock Bracket Kit will bolt to this tie rod and may be used with many stock stabilizer shocks, an upgraded CE-9170SD1 Rancho RS5000 stabilizer shock and likely many other aftermarket shocks
- You must grease all rod ends via their zerk fittings before use
- Grease unit with non-synthetic, hi-moly lube grease, such as our CE-9013G
- Tie Rod Tube (only): JK-9703TRS
- Tie Rod End Forging (LH thread): JK-9703TRFL
- Tie Rod End Forging (RH thread): JK-9703TRFR
- Rod End Cartridge (fits either end): JK-9703CL
- 1 1/4 in.-12 LH Jam Nut: CE-9114LJN
- 1 1/4 in.-12 RH Jam Nut: CE-9114JN
- Tie Rod End Boot: JK-9703TRB
- Cotter Pin (fits all 4 points): CE-98338A190
