Given the dramatic changes in geometry high steer knuckles impose, this bracket kit is a combination solution that incorporates trac bar geometry relocation bracket to prevent you from incurring any bump steer, a higher relocated sway bar end link mounting point, a hydraulic assist steering ram mount, as well as a lower skid plate to protect your ram from rock bashing!
The large axle bracket, as well as the small bracket for use on the driver's side of the axle to relocate the sway bar end link mounting point, easily install, but do require some minor welding. However, both brackets can be mounted solidly enough with the bolts to allow you to drive to a welder if need be.
We recommend buying this bracket in our complete RJ-430000-101 ;High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our RJ-9120FJLF forged, organically shaped front trac bar is mandatory as we have optimized the JK's geometry via the use of the JL/JT trac bar. Additionally, use of our forged trac bar ensures that all components nest together for maximum up travel, as engineered.
We recommend buying this bracket kit in our complete RJ-430000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done.
The optimized geometry this kit provides requires the use of our RJ-9120FJLF trac bar
We highly recommend the use of our RJ-107101-101 adjustable bump stop kit to attain maximum attainable up-travel.
This bracket is intended for use in conjunction with common PSC ram assist steering kits.
What's Included:

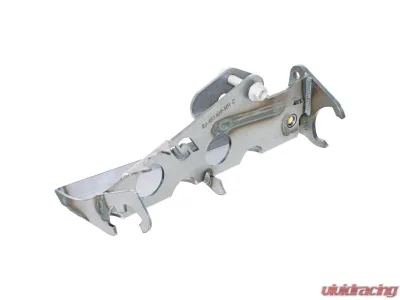

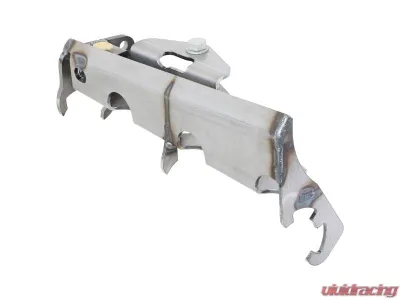

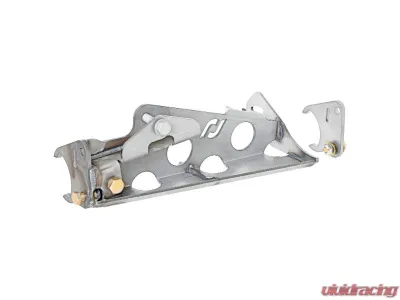

- Trac Bar and Sway Bar End Link Relocation and Ram Mount (Passenger's Side) Bracket

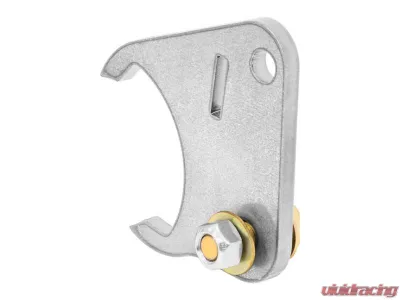

- Sway Bar End Link Relocation (Driver's Side) Bracket
- All necessary hardware
Specifications:
- For use on any factory JK Dana 30 or Dana 44 front differential, or any aftermarket replacement axle that features factory specification inner C-knuckles and up to 3 1/2 in. diameter axle tubes.
- Brackets provide new sway bar link mounting holes that are raised 2 1/8 in. higher than stock (sway bar link lengths must be adjusted to accommodate this).
- Requires a hydraulic assist steering ram stroke of 7.375 in. to achieve full potential (factory steering radius).
Fitment:
- Jeep JK Wrangler Unlimited (4-door) 2007-2017
- Jeep JK Wrangler (2-door) 2007-2017
Other Part Numbers:
RockJock 4x4 #431109-103
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
RockJock is a company created by John Currie and specializes in manufacturing quality parts and accessories for the Jeep platform. For decades, John has had this deep passion and love for Jeep and offroading, which pushed him to design and build products that would withstand his adventures. Fast forward to today, RockJock has become one of the go-to brands when it comes to Jeep offroading parts in the market.
Jeep Parts ExpertsRockJock has been designing and building the best-performing, strongest, most durable products on the market since the 1980s. They initially offered a Jeep suspension upgrade based around Jeep CJ and YJ vehicles.
Then in 1998, they ventured into rock crawling competitions. In 2001, they won the Extreme Rock Crawling Championship Series in a RockJock equipped Jeep, TJ Wrangler. From then on, RockJock has been winning championships in numerous rock crawling, Ultra 4, and desert racing categories.
Continuous InnovationRockJock has always pushed itself to find ways to progress and innovate its products and adapt to the changing automotive market. They have parts that fit various Jeep models from the JL Wrangler, the JK Wrangler, and JT Gladiator.
Purchase RockJock Products At Vivid RacingIf you are in the market for high-quality offroad parts for your Jeep, then look no further as RockJock has got you covered. They offer a wide variety of products from steering parts, suspension kits, towing components, and more.
To know more about RockJock and what they can offer, visit Vivid Racing and check out their list of products that fit your specific requirement.
Warranty:
John Currie Performance Group, Inc. DBA Rock Jock (“RockJock”) warranties, to the original purchaser with physical proof of purchase, all items manufactured by RockJock to be free from defects in materials and workmanship for the limited period of two (2) years from the stated delivery date on invoice. Any alteration or improper use as determined by RockJock in its sole discretion will void this warranty. Further, we disclaim any liability for action resulting from failure or parts durability. We disclaim any express or implied warranties, including, without limitation, implied warranties of merchantability, condition of any kind and fitness for a particular purpose. Our products may be subject to an infinite variety of conditions due to the manner in which they are used, serviced and/or installed. Purchasers and users of such products rely upon their own judgment as to the suitable use, selection, service, and installation of such products. This warranty does not cover damage caused by or facilitated by failure of non-RockJock components. This warranty does not extend to, and RockJock shall not be liable for, any agreements or representations made by dealers or resellers of RockJock products beyond what is stated here.
This warranty is not assignable and non-transferable. Because all parts which we sell are intended for use in heavy duty applications, it is not possible to warranty or guarantee the performance of any items under all circumstances. Each warranty represents the sole and exclusive remedy for any product defect or failure and our total liability for any part we warrant. RockJock’s liability under this warranty shall be limited to the cost for repair, replacement or an upgrade of the product (at RockJock’s sole and absolute discretion). Upgrade cost would be at the user’s expense. Consequential costs such as, but not limited to labor fees, loss of use, loss of revenue, loss of time, towing fees or freight charges are not covered. Any product that, in the opinion of RockJock, has been abused, altered, incorrectly installed or used in competition is not covered. Nothing in this warranty is intended to be a representation by RockJock that offroad component failures cannot occur.
Warranty Procedure:
Contact your RockJock dealer or RockJock directly about the problem prior to removing any part from the vehicle. If it appears that the part is warrantable through means of verbal and/or written communication and photos, you will be given a Return Materials Authorization (RMA) Number and asked to return the part to RockJock, freight prepaid. If the part is found to be warrantable, it will be repaired or replaced and returned to you. All freight charges are the customer’s responsibility. If a replacement part is needed before the part in question can be returned, you must first purchase the replacement part. Then, if the part in question is deemed warrantable, you will be credited / refunded.
