Given the dramatic changes in geometry high steer knuckles impose, this axle bracket easily bolts on to your factory axle and provides you with geometry correction for your trac bar, raising it's mounting point 2 in., to prevent you from incurring any bump steer after installing the high steer knuckles. The stabilizer shock mount portion of the bracket gives you an easy bolt up anchor point for your shock that sets the shock at a considerably higher position than stock, behind the raised tie rod, to protect it from rocks!
We recommend buying this bracket in our complete RJ-430001-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our RJ-9120FJK forged, organically shaped front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as engineered.
If you were intending to take advantage of our maximum optimized JK high steer components that incorporate the longer JL/JT Trac Bar, you'll want to look at our RJ-431111-103 bracket kit.
We recommend buying this bracket kit in our complete RJ-430001-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done.
For a successful finished install of this kit, we recommend the use of our RJ-441002-101 tie rod clamp bracket to relocate the opposite end of the shock into the ideal place with regards to geometry.
This bracket allows for the reuse of the use of factory JK stabilizer stabilizer shock.
If you are intending to use a Bilstein 5100 series stabilizer shock with this system and our High Steer Knuckle Kit, see Bilstein part number 33-292984 for the bolt-on shock.
If you are intending to use a Fox stabilizer shock with this system, see Fox part number 985-24-145 is the shock for this application, but it is not a simple bolt on affair in all instances. Some grinding and fitment may need to be done for optimum clearance and performance.
This bracket does NOT work with Twin tube and thru-rod dampers as they will intersect with other components!
With regards to differential cover clearance, this system clears fine with an OEM cover. Aftermarket diff covers may need to be clearanced to allow the stabilizer shock tie rod bracket to clear. However, be aware, some diff covers may not work at all.
What's Included:

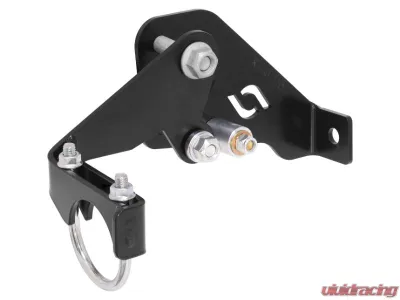

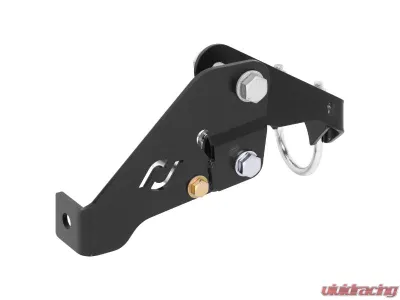

- Trac Bar and Stabilizer Shock Relocation Bracket
- All necessary hardware
Specifications:
- For use on any factory JK front differential (Dana 30 or 44), in conjunction with our High Steer Kit
- Relocates Trac Bar mounting hole 2 in. higher than stock
- Moves stock Steering Stabilizer Shock mounting point upward for correct, matched geometry to the tie rod in high steer applications
- For use in conjunction with our RJ-441002-101 stabilizer shock tie rod clamp bracket kit
Fitment:
- Jeep JK Wrangler Unlimited (4-door) 2007-2017
- Jeep JK Wrangler (2-door) 2007-2017
Other Part Numbers:
RockJock 4x4 #431110-103
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
RockJock is a company created by John Currie and specializes in manufacturing quality parts and accessories for the Jeep platform. For decades, John has had this deep passion and love for Jeep and offroading, which pushed him to design and build products that would withstand his adventures. Fast forward to today, RockJock has become one of the go-to brands when it comes to Jeep offroading parts in the market.
Jeep Parts ExpertsRockJock has been designing and building the best-performing, strongest, most durable products on the market since the 1980s. They initially offered a Jeep suspension upgrade based around Jeep CJ and YJ vehicles.
Then in 1998, they ventured into rock crawling competitions. In 2001, they won the Extreme Rock Crawling Championship Series in a RockJock equipped Jeep, TJ Wrangler. From then on, RockJock has been winning championships in numerous rock crawling, Ultra 4, and desert racing categories.
Continuous InnovationRockJock has always pushed itself to find ways to progress and innovate its products and adapt to the changing automotive market. They have parts that fit various Jeep models from the JL Wrangler, the JK Wrangler, and JT Gladiator.
Purchase RockJock Products At Vivid RacingIf you are in the market for high-quality offroad parts for your Jeep, then look no further as RockJock has got you covered. They offer a wide variety of products from steering parts, suspension kits, towing components, and more.
To know more about RockJock and what they can offer, visit Vivid Racing and check out their list of products that fit your specific requirement.
Warranty:
John Currie Performance Group, Inc. DBA Rock Jock (“RockJock”) warranties, to the original purchaser with physical proof of purchase, all items manufactured by RockJock to be free from defects in materials and workmanship for the limited period of two (2) years from the stated delivery date on invoice. Any alteration or improper use as determined by RockJock in its sole discretion will void this warranty. Further, we disclaim any liability for action resulting from failure or parts durability. We disclaim any express or implied warranties, including, without limitation, implied warranties of merchantability, condition of any kind and fitness for a particular purpose. Our products may be subject to an infinite variety of conditions due to the manner in which they are used, serviced and/or installed. Purchasers and users of such products rely upon their own judgment as to the suitable use, selection, service, and installation of such products. This warranty does not cover damage caused by or facilitated by failure of non-RockJock components. This warranty does not extend to, and RockJock shall not be liable for, any agreements or representations made by dealers or resellers of RockJock products beyond what is stated here.
This warranty is not assignable and non-transferable. Because all parts which we sell are intended for use in heavy duty applications, it is not possible to warranty or guarantee the performance of any items under all circumstances. Each warranty represents the sole and exclusive remedy for any product defect or failure and our total liability for any part we warrant. RockJock’s liability under this warranty shall be limited to the cost for repair, replacement or an upgrade of the product (at RockJock’s sole and absolute discretion). Upgrade cost would be at the user’s expense. Consequential costs such as, but not limited to labor fees, loss of use, loss of revenue, loss of time, towing fees or freight charges are not covered. Any product that, in the opinion of RockJock, has been abused, altered, incorrectly installed or used in competition is not covered. Nothing in this warranty is intended to be a representation by RockJock that offroad component failures cannot occur.
Warranty Procedure:
Contact your RockJock dealer or RockJock directly about the problem prior to removing any part from the vehicle. If it appears that the part is warrantable through means of verbal and/or written communication and photos, you will be given a Return Materials Authorization (RMA) Number and asked to return the part to RockJock, freight prepaid. If the part is found to be warrantable, it will be repaired or replaced and returned to you. All freight charges are the customer’s responsibility. If a replacement part is needed before the part in question can be returned, you must first purchase the replacement part. Then, if the part in question is deemed warrantable, you will be credited / refunded.
