RPM Steering 3-Link Front & Double Triangulated 4-Link Rear Long Arm Upgrade Jeep Wrangler TJ | LJ 2004-2006 - RPM-3035
JLU Bolt-In 3-Link Front/4-Link Rear Double Triangulated Long Arm Upgrade
We set out 2 years ago to design a double triangulation for the JKU that solved many challenges and restrictions with the JK platform. Now we are taking that technology into the JL platform. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JLU. There is no need to remove the body for installation.
Kit Includes:

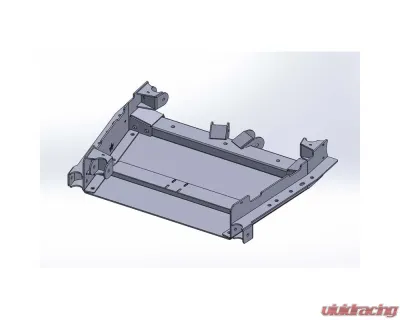

  • Bolt-in front cross member with lower link mounts
  • Bolt-in driver frame side third link mount
  • Bolt-in reinforcement brackets for driver side cross member
  • 2" 7075 T6 aluminum lower links w/Rock Jock narrow joints at both ends
  • 1.75" 7075 T6 aluminum upper link w/Rock Jock narrow joint at frame and custom uniball at axle
  • Rear weld in laser cut crossmember with lower link mounts
  • Rear weld in upper link frame side mounts
  • Truss top 4-link mounts (truss not included)
  • Axle side lower control arm mounts
  • (2) 1.75" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (2) 2" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (1) Skid Plate 1/4" laser cut and CNC broke smooth bottom
  • Includes all grade 8/10.9 hardware
Notes:
  • This kit requires:
    • Custom exhaust modification
    • Drilling one hole and welding a third link mount on the axle or truss
    • The side JLU factory fuel tank be removed
    • Rear axle to have a truss (not included)
  • Our skid plate can be modified to work with other front crossmembers

Other Part Numbers:
RPM Steering #RPM-3035

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

RPM Steering Logo

What Is RPM Steering?

RPM Steering is a company dedicated to providing high-quality aluminum steering products to the automotive market. Its main focus is on the Jeep and off-road community. RPM Steering guarantees its products to be virtually bulletproof and backs them with a lifetime “bend or break warranty”. Made from only the best materials and rigorously testing to ensure durability and longevity, RPM Steering parts are Jeep tough!

What Does RPM Steering Offer?

RPM Steering boasts a comprehensive lineup of Jeep products that cover the 2007-2018 Jeep Wrangler, the 2018+ Wrangler JL/JT, and 2018+ Wrangler TJ/LJ. RPM offers both stock steering components and one-ton swap steering kits. It addition to its extensive inventory of steering components, RPM Steering also supplies tie rod ends and replacement parts like drag links and taper sleeves. What’s more, RPM Steering also offers a wide range of suspension parts, including strut towers, brackets, and lift components like adjustable track bars.

RPM steering kits include massive 2-inch solid 7075 T6 aluminum links with hexed ends for easy adjustment. They also come with 1.25-inch forged tire rod ends with cartridges, drag links, anti-flop ends, and serrated Belleville washers. Installation is fairly simple and there is no drilling or modification needed.

RPM Steering Parts at Vivid Racing

If you are looking for solid, high-quality parts for your Jeep, look no further than the experts at RPM Steering. RPM Steering has what you need to feel confident and comfortable on your next off-road adventure. Vivid Racing is proud to carry a long lineup of RPM Steering products, including sway bar links, tie rods, adjustable track bars, steering kits, and more! If you have any questions regarding the items listed above or about RPM Steering, please contact our specialized sales team at (480) 966-3040.
