Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200
Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200 - Image 5 Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200 - Image 2 Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200 - Image 3 Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200 - Image 4 Skunk2 Aluminum Gun Metal K-Series Oil Pan for Lean Mounts - 368-05-0200 - Image 5

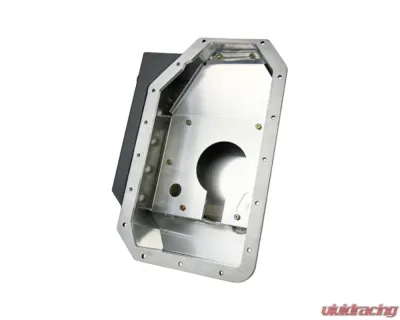

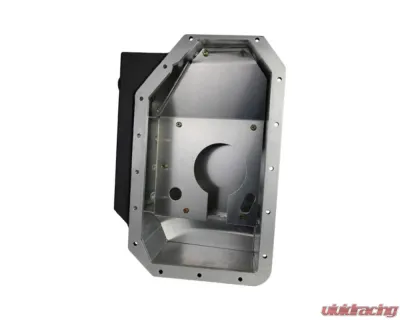

Racing places the vehicle's engine under extreme abuse, but ensuring it has the proper oil flow is key. The Skunk2 Racing K-Series Aluminum Racing Oil Pan is a necessary addition to any high-performance K20 or K24 engine that needs improved oil control during high G-force operation*. Skunk2's K-Series Oil Pan is made from TIG welded aircraft grade 5052 aluminum and features a baffled sump with trap doors. This allows oil to freely flow in while preventing oil from flowing out and ensures that the oil pump pick-up is surrounded by oil when the vehicle is experiencing high G-Forces.

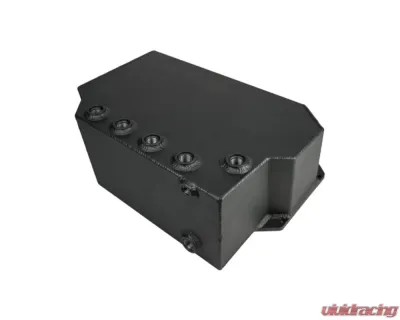

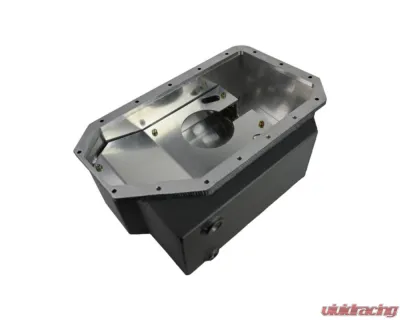

The Skunk2 Racing K-Series Aluminum Racing Oil Pan's design allows the oil to be flung away from the crankcase into the 'kick-out,' reducing windage-related power losses and reducing oil aeration for improved oiling performance. The 'kick-out' on the oil pan is also designed for improved windage control, reduced aeration, and increased oil capacity, improving engine power and reliability. The Skunk2 Racing K-Series Aluminum Racing Oil Pan features a billet flange 10.5mm thick, -10AN turbo oil return port, nine-quart oil capacity, and decreased weight over steel counterparts, all while improving the ground clearance on the vehicle.

Features:
  • Baffled Sump With Trap Doors
  • Kick Out Pan Design
  • Improved Ground Clearance
  • 9-Quart Oil Capacity
  • Made From Aircraft Grade 5052 Aluminum
  • Gun Metal Wrinkle Powder Coating


Fitments:
  • K20A, K20A1, K20A2, K20A3, K20A4, K20A6, K20A7, K20A9
  • K20Z1, K20Z3
  • K24A, K24A1, K24A2, K24A3, K24A4, K24A8

Note:

  • Requires the use of PRB oil pump from K20 series engine
  • For road race applications, we recommend adding an Accusump for added insurance.
