Spohn Performance - Spohn Bright Red 4130N Chrome Moly Tubular Adjustable Panhard Bar w/ Del-Sphere Pivot Joints Ford Mustang 2005-2014 for 2005-2014 Ford Mustang M5-105-4130R | Vivid Racing
Replace the factory's heavy, solid panhard bar with flimsy rubber bushings with one of our heavy duty adjustable units! Our adjustable panhard bar greatly increases the rear end's lateral stability and it's the best component for serious handling performance.
Our adjustable panhard bar allows for centering the rear axle housing after lowering and provides for serious handling performance. It also allows for alignment of the rear end for clearance when running larger tires and greatly increases the rear end's lateral stability.
This adjustable panhard bar features Del-Sphere pivot joints that provide for 22? of bind-free articulation and it's available powder coated in your choice of the above colors for a brilliant and durable finish.

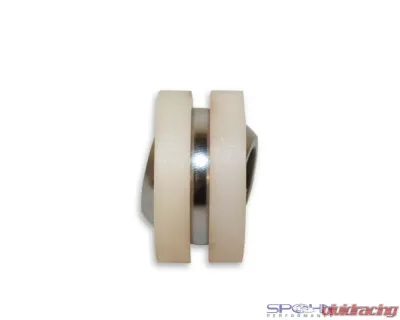

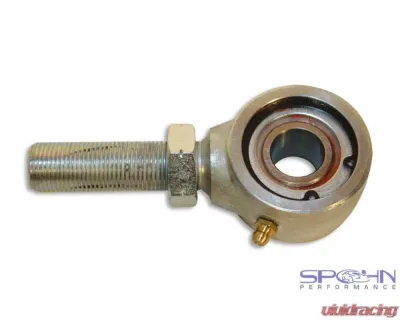

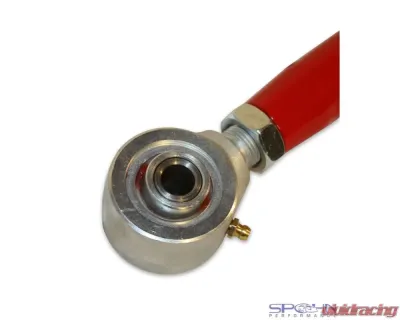

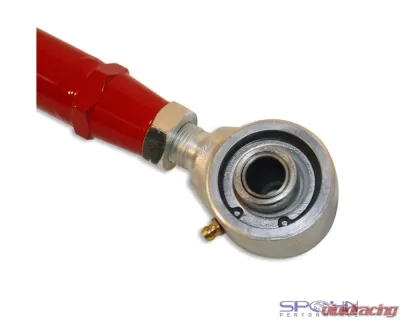

Del-Sphere Pivot Joints:The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin bushing cups.
Think of the Del-Sphere pivot joint as a Delrin bushed spherical rod end. The Delrin bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 22? of rotation! Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.

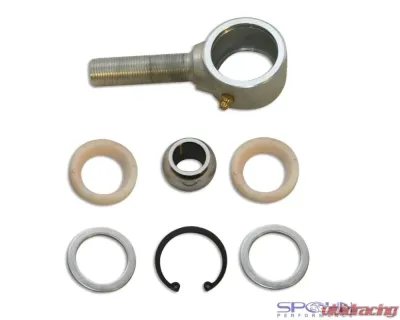

Our Del-Sphere pivot joint features a one piece forged and heat treated 4130 chrome moly housing, a heat treated and chrome plated chrome moly spherical ball, Delrin bushing cups, heat treated retainer washers and snap ring, an external grease fitting, and a beautiful silver zinc plated housing finish.
We doubt you'll ever need to replace the Delrin bushing cups, but they certainly can be. Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.
4130N Chrome Moly Upgrade: The ultimate in bullet-proof lightweight strength, 100% TIG welded chrome moly construction! Same as above, but constructed entirely from 4130N chrome moly tubing.
Specifications & Features:
Our adjustable panhard bar allows for centering the rear axle housing after lowering and provides for serious handling performance. It also allows for alignment of the rear end for clearance when running larger tires and greatly increases the rear end's lateral stability.
This adjustable panhard bar features Del-Sphere pivot joints that provide for 22? of bind-free articulation and it's available powder coated in your choice of the above colors for a brilliant and durable finish.
Del-Sphere Pivot Joints:The Spohn Performance Del-Sphere pivot joint solves the shortcomings of the factory rubber and aftermarket polyurethane bushings. Our Del-Sphere pivot joint incorporates a spherical ball which is surrounded by Delrin bushing cups.
Think of the Del-Sphere pivot joint as a Delrin bushed spherical rod end. The Delrin bushing cups absorb shock and road noise so you get the quiet and smooth ride of a bushing as well as 22? of rotation! Designed and manufactured exclusively by Spohn Performance, we have taken street suspension performance to the next level.
Our Del-Sphere pivot joint features a one piece forged and heat treated 4130 chrome moly housing, a heat treated and chrome plated chrome moly spherical ball, Delrin bushing cups, heat treated retainer washers and snap ring, an external grease fitting, and a beautiful silver zinc plated housing finish.
We doubt you'll ever need to replace the Delrin bushing cups, but they certainly can be. Unlike a spherical rod end, the Del-Sphere pivot joint is 100% rebuildable.
4130N Chrome Moly Upgrade: The ultimate in bullet-proof lightweight strength, 100% TIG welded chrome moly construction! Same as above, but constructed entirely from 4130N chrome moly tubing.
Specifications & Features:
- Centers the rear axle housing after lowering your ride height.
- Constructed of 1.25" x .095" wall DOM tubing.
- Stronger, yet lighter than stock.
- 3/4" Del-Sphere pivot joints on both ends of the panhard bar provide for 22? of unrestricted articulation.
- These Del-Sphere pivot joints are designed for narrow track bar mounts so the housing does not contact the mount.
- CNC machined through sleeve and silver zinc plated steel spacers keep the joints perfectly centered inside of the vehicle mounting brackets.
- Right hand and left hand threaded ends with wrench flat allows for easy on-the-car adjustments.
- TIG welded 4130 chrome moly threaded tube adapters for maximum thread strength.
- This is the highest quality, easiest to adjust on-the-car panhard bar on the market!
- Re-uses the factory mounting hardware, no need to drill out your car's mounting brackets.
- Easy 100% bolt in installation with the use of basic hand tools.
- Available powder coated in your choice of the above colors for a brilliant and durable finish.
- Ford Mustang 2005-2014
