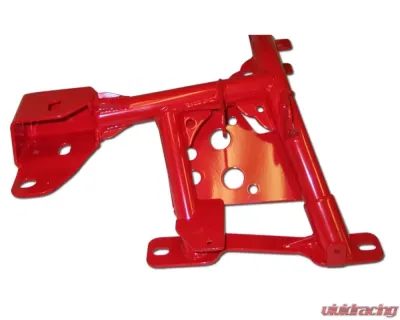

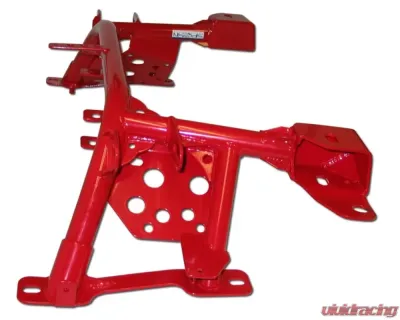

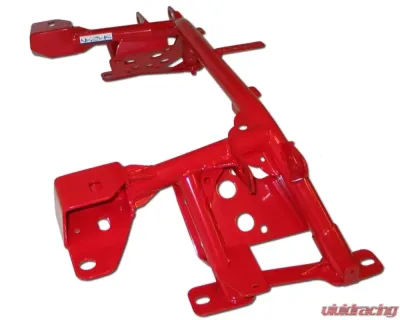

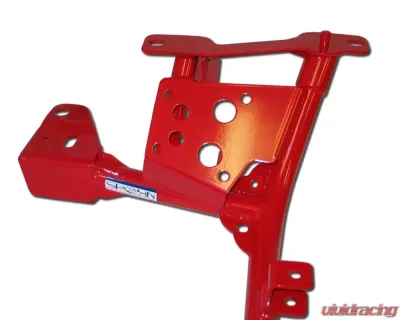

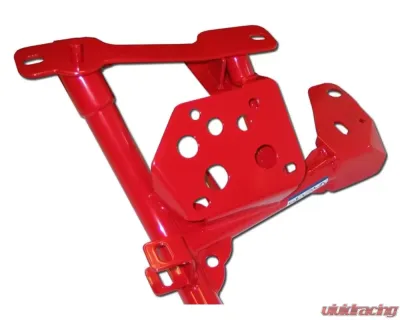

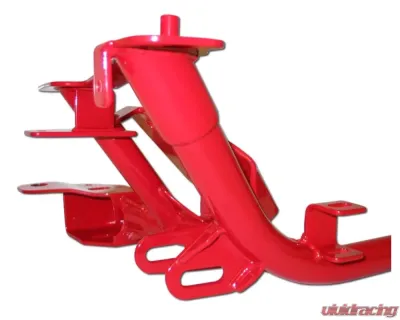

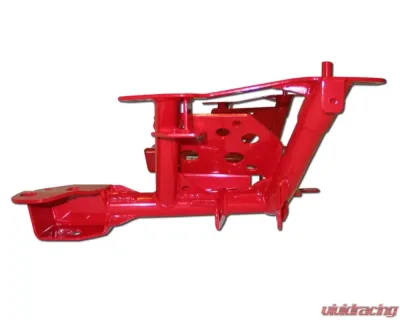

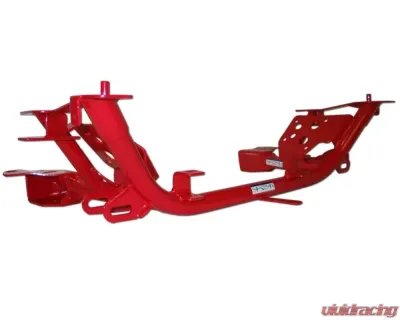

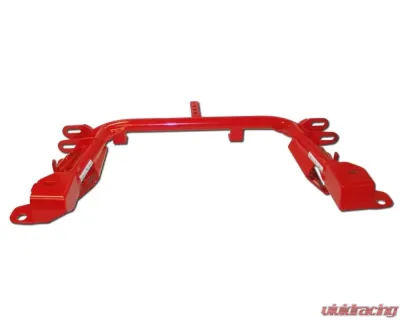

Spohn Performance - Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body V6 (3.4L or 3.8L) 1993-2002 704-V6-4130R | Vivid Racing
Spohn Performance's tubular k-member for the 1993-2002 V-6 F-Body Camaro and Firebird sets a new, higher standard of performance and quality. When we designed our k-member, we had several goals in mind.
One was to provide the performance capabilities needed for the toughest race tracks, another was to provide the strength and durability required for the demands of a daily driven vehicle.
Our k-member provides substantial weight savings and frees up a lot of room in the engine bay for our drag race customers, but it also provides the strength, rigidity, and durability for our road race, autox, and daily driver customers as well..... all in one package!
Spohn's tubular k-member features gusseted a-arm mounts for maximum rigidity and side load support. Our k-members are gusseted in critical areas (over 20 locations!) to ensure that a weld never breaks. They decrease overall weight, and provide much more room for large tube headers, turbo systems, etc.
Our jig was built around the factory k-member providing for an exact fit and factory exact dimensions. Every detail of the factory k-member was incorporated, including all five brake line mounts. There's no "zip tying" of the brake lines with our k-member.
4130N Upgrade: The ultimate in bullet-proof lightweight strength, 4130N chrome moly tubing construction! Same as above, but constructed from 1.50" x .083" and 1.25" x .095" 4130N chrome moly tubing.
Specifications:
One was to provide the performance capabilities needed for the toughest race tracks, another was to provide the strength and durability required for the demands of a daily driven vehicle.
Our k-member provides substantial weight savings and frees up a lot of room in the engine bay for our drag race customers, but it also provides the strength, rigidity, and durability for our road race, autox, and daily driver customers as well..... all in one package!
Spohn's tubular k-member features gusseted a-arm mounts for maximum rigidity and side load support. Our k-members are gusseted in critical areas (over 20 locations!) to ensure that a weld never breaks. They decrease overall weight, and provide much more room for large tube headers, turbo systems, etc.
Our jig was built around the factory k-member providing for an exact fit and factory exact dimensions. Every detail of the factory k-member was incorporated, including all five brake line mounts. There's no "zip tying" of the brake lines with our k-member.
4130N Upgrade: The ultimate in bullet-proof lightweight strength, 4130N chrome moly tubing construction! Same as above, but constructed from 1.50" x .083" and 1.25" x .095" 4130N chrome moly tubing.
Specifications:
- 1.50" x .120" wall DOM tubing - formed one piece front hoop.
- 1.50" x .120" wall DOM tubing a-arm mount tubes.
- 1.25" x .120" wall DOM tubing rear support tube.
- OEM style button head locating pins.
- CNC laser cut 3/16" steel gussets in over 20 locations for maximum strength and durability.
- CNC laser cut and formed 3/16" steel a-arm mounts, solid welded inside and outside. Outside welds are sanded smooth to allow for a flush fit to the car, eliminate stress risers, and provide a clean and smooth professional appearance.
- All a-arm mounts are gusseted front and rear for side load strength. The slots have been lengthened to provide more a-arm adjustment over the stock k-member.
- Recessed passenger's side rear a-arm mount to provide clearance for long tube headers. Rear a-arm mount boxes are offset bent just like the factory k-member for factory exact fit and finish.

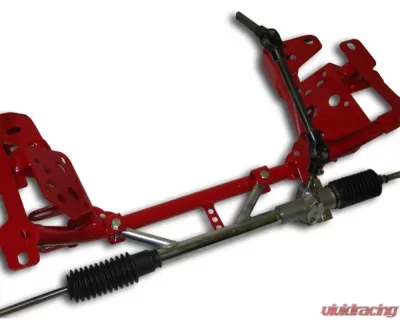

- CNC laser cut and formed reinforced 3/16" steel rack mounts.
- Welded in a special built rotary jig to insure an exact fit and allow for precision welds entirely in the flat position.
- Includes (6) new 12mm Grade 10.9 k-member mounting bolts and heavy flat washers.
- Includes (6) new flanged head motor mount bolts and flanged head steel lock nuts.
- Includes all five brake line mounts and new brake line mounting tab bolts and nuts.
- Our dual pattern motor mounting pads allow for the installation of 3.4L (93-95) or 3.8L (96-02) V-6 engines.
- Durable and brilliant powder coated finish in your choice of the above colors.
- Chevrolet GM F-Body Camaro V6 (3.4L or 3.8L) 1993-2002
- Pontiac GM F-Body Firebird V6 (3.4L or 3.8L) 1993-2002
