Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R
Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 14 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 2 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 3 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 4 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 5 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 6 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 7 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 8 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 9 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 10 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 11 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 12 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 13 Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 - 703-4130R - Image 14

Spohn Performance - Spohn Bright Red 4130N Chrome Moly Tubular K-Member GM F-Body SBC | BBC | LT1 | 3.8L V-6 1982-1992 703-4130R | Vivid Racing

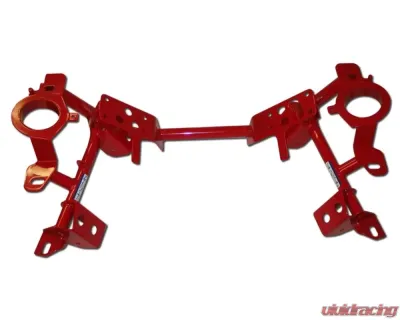

Spohn Performance's tubular k-member for the 1982-1992 F-Body Camaro and Firebird sets a new, higher standard of performance and quality. When we designed our k-member, we had several goals in mind.

One was to provide the performance capabilities needed for the toughest race tracks, another was to provide the strength and durability required for the demands of a daily driven vehicle.

Our k-member provides substantial weight savings and frees up a lot of room in the engine bay for our drag race customers, but it also provides the strength, rigidity, and durability for our road race, autox, and daily driver customers as well..... all in one package!

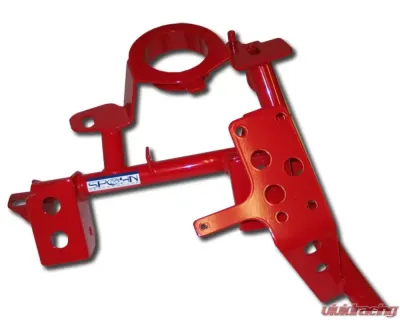

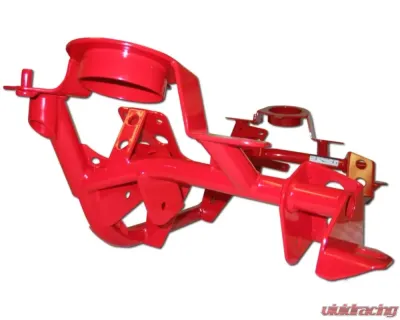

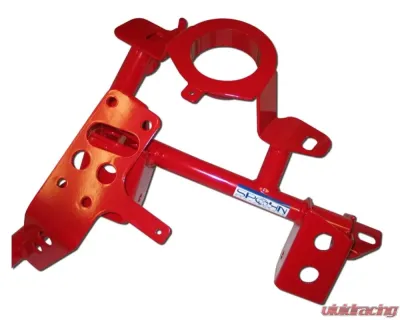

Spohn's tubular k-member features boxed a-arm mounts for maximum rigidity and side load support. Our k-members are gusseted in critical areas to ensure that a weld never breaks. They decrease overall weight, and provide much more room for large tube headers, turbo systems, etc.

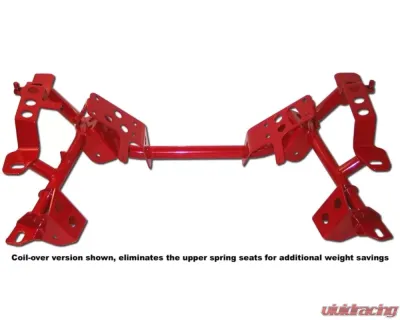

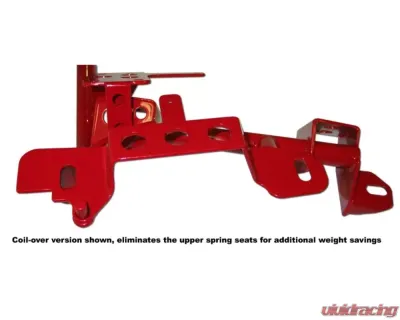

K-members are available set up for stock style coil springs or in a coil over version that eliminates the upper spring perch for additional weight savings. Our jig was built around the factory k-member providing for an exact fit and factory exact dimensions.

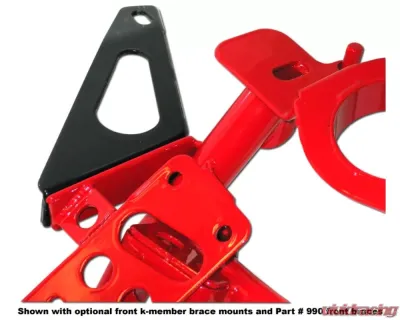

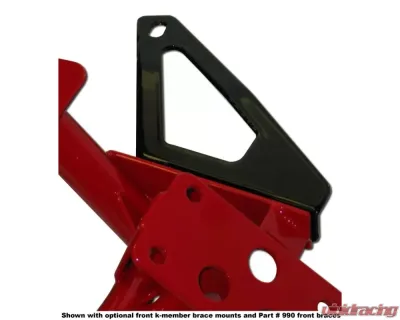

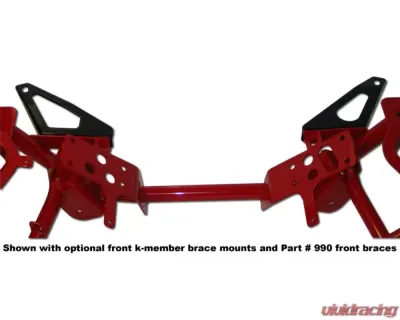

Every detail of the factory k-member was incorporated, including brake line mounts (there's no "zip tying" of the brake lines with our k-member) and optional front k-member brace mounts.

4130N Upgrade: The ultimate in bullet-proof lightweight strength, 4130N chrome moly tubing construction! Same as above, but constructed from 1.50" x .083" and 1.25" x .095" 4130N chrome moly tubing.

Specifications:
  • 1.50" x .120" wall DOM tubing - one piece formed front hoop.
  • 1.25" x .120" wall DOM tubing a-arm mount tubes.
  • CNC laser cut and formed 3/16" steel mounts and gussets.
  • OEM style button head locating pins.
  • Welded in a special built rotary jig to insure an exact fit and precision welds entirely in the flat position.
  • Includes (6) new 12mm Grade 10.9 k-member mounting bolts and heavy flat washers.
  • Includes all four brake line mounts and new brake line mounting tab bolts and nuts.
  • Durable and brilliant powder coated finish in your choice of the above colors.
Fitments:
  • Chevrolet GM F-Body Camaro SBC | BBC | LT1 | 3.8L V-6 1982-1992
  • Pontiac GM F-Body Firebird SBC | BBC | LT1 | 3.8L V-6 1982-1992
