Spohn Performance - Spohn Bright Red 4130N Chrome Moly Tubular Steering Brace Chevrolet | Pontiac GM F-Body 1983-1992 995-4130R | Vivid Racing

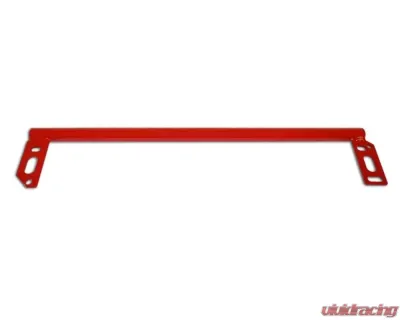

The Spohn Performance tubular steering brace for the 1983-1992 F-Body Camaro and Firebird is an upgraded, stronger version of the "Wonder Bar" that was standard equipment on many of the IROC and 1LE cars. No longer available through GM, we decided to design our own version of this vital piece of equipment.

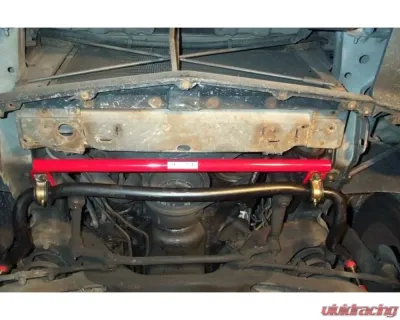

This brace is designed to stiffen the front sub-frame and reinforce the steering box mount. This area is well known to be problematic on the third generation F cars. The tubular steering brace will not only provide for firmer steering response, but it will prevent the sub-frame stress cracking problem caused by the flex of the steering box. That's why the "Wonder Bar" is considered a must do upgrade on any third generation F-Body.
Constructed of 1.25" x .120" dom tubing and laser cut 3/16" mounting brackets. Our laser cut mounting brackets are designed to work with OEM front sway bar bushings with the locator tabs and bushing to frame inserts, they will also work with the universal style aftermarket polyurethane bushings.
Available powder coated in your choice of the above colors.
4130N Upgrade: The ultimate in bullet-proof lightweight strength, 100% TIG welded chrome moly construction! Same as above, but constructed entirely from 1.25" x .095" 4130N chrome moly tubing.
Fitments:
This brace is designed to stiffen the front sub-frame and reinforce the steering box mount. This area is well known to be problematic on the third generation F cars. The tubular steering brace will not only provide for firmer steering response, but it will prevent the sub-frame stress cracking problem caused by the flex of the steering box. That's why the "Wonder Bar" is considered a must do upgrade on any third generation F-Body.
Constructed of 1.25" x .120" dom tubing and laser cut 3/16" mounting brackets. Our laser cut mounting brackets are designed to work with OEM front sway bar bushings with the locator tabs and bushing to frame inserts, they will also work with the universal style aftermarket polyurethane bushings.
Available powder coated in your choice of the above colors.
4130N Upgrade: The ultimate in bullet-proof lightweight strength, 100% TIG welded chrome moly construction! Same as above, but constructed entirely from 1.25" x .095" 4130N chrome moly tubing.
Fitments:
- Chevrolet GM F-Body Camaro 1983-1992
- Pontiac GM F-Body Firebird 1983-1992
- Will not fit 1982 F-Body or 1989 Turbo Trans-Am.
