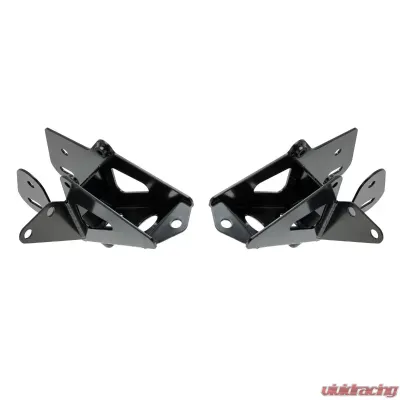

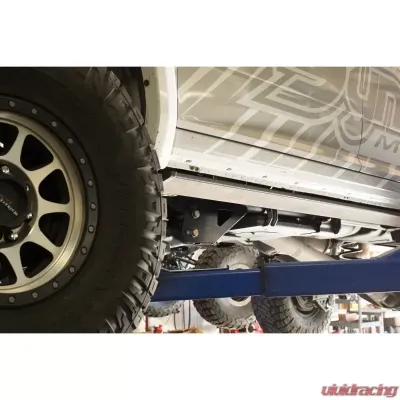

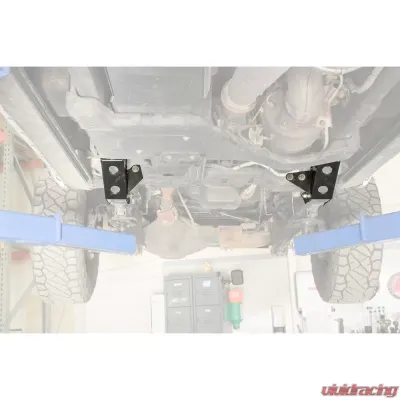

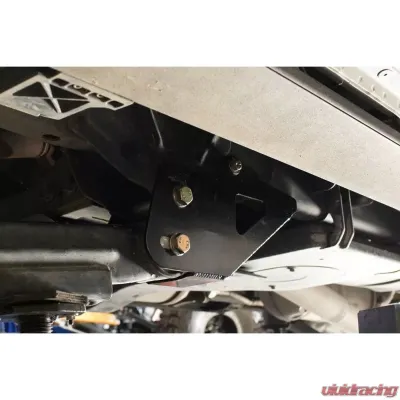

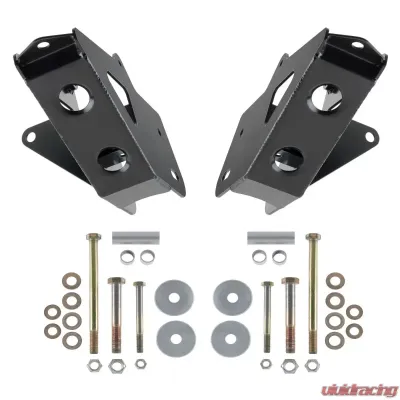

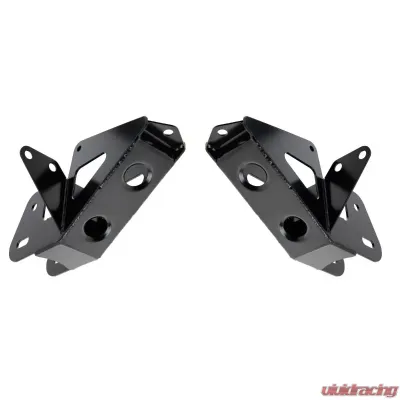

Synergy Ram Truck Radius Arm Drop Brackets improve ride quality by lowering the radius arm mounting locations at the frame to maintain factory front suspension geometry for leveled and lifted trucks. Flippable cam spacers in the drop brackets allow the user to run the axle 1/2 inch forward for leveled trucks or 1-1/2 inches forward to clear larger tires and taller lifts.
Fits: 2014-present RAM 2500/2013-present RAM 3500
Features:
- Improved ride quality by maintaining factory suspension geometry at lifted ride heights.
- Adjustable axle placement for oversized tires and taller lifts.
- Drop brackets lower the front control arm mounting position 3 inches at the frame side.
- Maintains factory geometry on lifted vehicles. Bolt-on design allows installation with simple hand tools.
- CAD designed from heavy duty 3/16 inch steel plate and includes an integrated, crush resistant, grade 50 A-572 steel skid plate.
- Stainless steel flippable cam spacers allow the axle to be located 1/2 inch forward or 1-1/2 inches forward to allow clearance for larger tires and taller lifts.
- Drop brackets do not need to be removed to service the drivetrain.
- Suspension components feature an abrasive resistant powder coat finish for maximum durability and corrosion resistance.
Notes:
- Designed to be used with 2.5 - 6 inch front lift springs.
- Recommend having the truck aligned after installation.
- Running the axle 1-1/2 inches forward may require a driveshaft spacer or lengthened driveshaft.
- Running larger tires with the axle 1-1/2 inches forward will require an aftermarket front bumper or trimming of the stock bumper.
- Running the axle 1-1/2 inches forward may require sway bar relocation brackets.
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Synergy Manufacturing is an aftermarket company that specializes in creating high-performance parts for various offroad vehicles. The company started back in 2005 and has been dubbed as the industry’s innovator of high-performance automotive components. They have continuously provided their customers with quality products. Hence, they have become a household name when it comes to offroading parts.
Designed by ExpertsSynergy Manufacturing offers suspension parts and steering components designed to withstand the harsh condition of offroading. They have engineers with over decades of experience in suspension design and they use the latest CAD engineering software that allows them to create products. This makes their offerings made to fit perfectly on your vehicle.
Tested to PerformTheir products are all made in the USA to ensure that they can consistently control the quality of their products. Their parts are not only tested inside the lab but are also subjected to a real-world environment. Their components are subjected to hardcore offroading activities in different offroading locations worldwide such as the Hammer Trails in Johnson Valley, The Rocks of Moabs, and different deserts such as the ones in California, Mexico, and Australia.
Purchase Synergy Manufacturing products at Vivid RacingIf offroading is your thing and you want parts that would be able to withstand its harsh environment, then Synergy Manufacturing is the brand for you. They are known for developing fully adjustable suspension systems and are designed to maximize both the vehicle’s on and offroad capabilities. Visit Vivid Racing and check out all their list of products that would fit your specific needs.
- Warranty is non-transferable
- All products must be on the original vehicle they were installed on by the original purchaser
- Proof of purchase is required for all warranty issues
- Synergy is not responsible for shipping or any additional labor charges incurred with the warranty of any product
- Parts that are subject to wear and tear are not eligible for warranty. These products include but are not limited to: bushings, bump stops, bearings, tie rod ends, and dust boots
- Products must be installed correctly, unaltered, and free from abuse
- Synergy heavy duty front ball joint sets carry a 12 Month Unlimited-Warranty
- Synergy hard parts have a Limited-Lifetime Warranty and are guaranteed to be free from defects in materials and workmanship
- Product finishes are not guaranteed
