Texas Speed & Performance Powder Coated Coil Pack Relocation Kit Cadillac | Chevrolet | Pontiac 2005-2017
$135.99

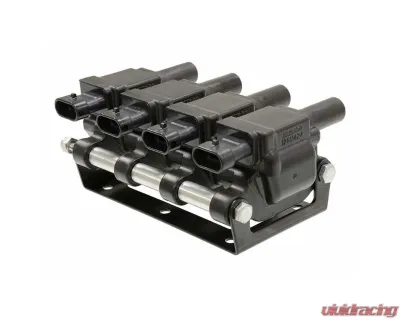

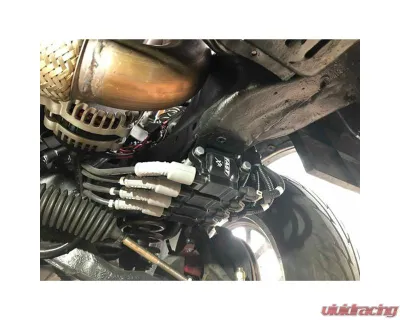

This is a bolt on LS coil relocation kit. Consisting of two laser cut cage type brackets that have been powder coated gloss black. This kit contains two brackets and enough hardware to do 8 coils or one V8 engine. The hardware consists of four 1/4" through bolts and poly lock nuts, and 12 billet aluminum spacers. We include two 36" relocation harnesses that allow you to mount the coil pack anywhere you want. These brackets can be mounted on the frame rails, firewall, under the headers on each side, etc.



Features:
  • Coil Pack Relocation Kit - Brackets, Coil Harness, and 45" extension harness
  • Fits LS3 LS4 LS9 LSX Coils with the following coil numbers 12570616, 12611424, D510C
  • Laser Cut and Powder Coated Black Bracket
  • 45" Relocation Harness Included (allows for relocation to about anywhere)

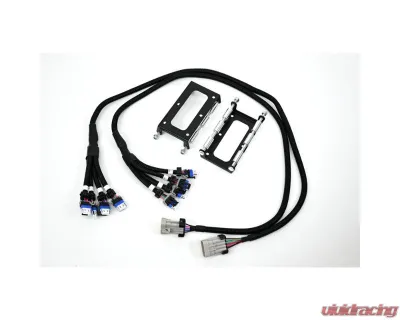

  • 2 Brackets, 2 Coil Harnesses, and two Extension Harnesses Included
  • Brackets are 6"x3.5"x1.25". With coils mounted they are approximately 6"x4.25"x2.25"


Fitment:
  • Cadillac CTS-V 2006-2007
  • Chevrolet Camaro 2010-2015
  • Chevrolet Corvette 2005-2013
  • Chevrolet Impala 2006-2009
  • Chevrolet SS 2014-2017
  • Chevrolet Trailblazer 2006-2009
  • Pontiac Grand Prix 2005-2008
  • Pontiac GTO 2055-2006
Note:
  • These Coils Came Factory On Most 2005 + Gm Based Vehicles With The Ls Based Engines.
  • They Will Not Fit Old Style Ls1, Ls6, Msd, Or Truck Style Coils
  • This Kit Does Not Include Coils
