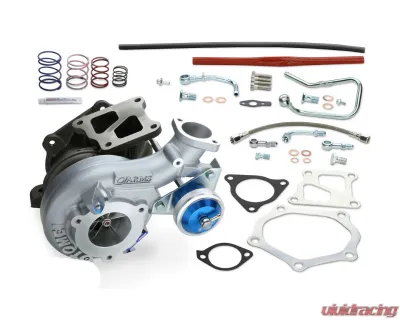

Tomei BX8280 Ball Bearing Turbocharger Arms Kit TB403A-MT02A for Nissan 240SX - TB403A-MT02A

Multi Range Billet Actuator

If you're looking to take your Mitsubishi EVO to the next level, this multi-rate billet actuator is where it's at. Built tough with a reinforced forged billet construction, it's designed to handle the demands of serious driving. With six springs included, you can really dial in your boost settings. Want to experiment? You can mix and match up to three springs for that sweet spot that works just right for your setup. Plus, the swivel type nipple makes routing hoses a breeze—no more fighting with awkward angles!

Billet Compressor Wheel

The new Billet Compressor Wheel is a game changer. Unlike those old cast wheels, this one is machined from aerospace-grade materials, so you know it's built to last. It's lightweight, which helps with turbo spool, and the thinner blades provide a larger surface area for airflow. Trust me, this means better performance and quicker response when you hit the gas. You'll notice the difference right away.

Specifications

  • Model: Mitsubishi 4B11
  • Target HP: 45
  • Bearing Type: Ball Bearing
  • Initial Boost Setting: 1 Kgf/Cm2
  • Compressor Wheel:
    • Inducer Diameter: 61 mm
    • Exducer Diameter: 82 mm
    • Trim: 5
    • Blades: 6
    • Material: A261
    • Production: CNC Billet
  • Turbine Wheel:
    • Exducer Diameter: 58 mm
    • Inducer Diameter: 67 mm
    • Trim: 7
    • Material: K41
    • Production: Cast
  • Compressor Housing:
    • Inducer Diameter: 62 mm
    • Exducer Diameter: 40 mm
    • A/R: 0.51
  • Turbine Housing:
    • Inducer Diameter: 4B1
    • Exducer Diameter: 4B1
    • A/R: 0.89

Install Instructions

  • Need help with installation? CLICK HERE for detailed instructions.

Fitment

  • Mitsubishi EVO10 (2008-2016)

This turbocharger arms kit is a perfect fit for your Mitsubishi Evolution X from 2008 to 2015. If you're serious about performance, this is a solid upgrade.

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Who is Tomei?

Tomei is one of the most recognizable brands when it comes to performance tuning. The company started in 1968 by Mr. Seiichi Suzuki and initially tuned race cars. Their concept is “To produce a great product for ultimate driving pleasure” which has translated into all their parts, making it a sought-after brand worldwide. Today, Tomei is used by various enthusiasts, tuners, professional drivers, and racers everywhere.

Racing Heritage

Tomei has its roots firmly attached to motorsports racing. With its experience in creating fast cars for decades, it was able to create parts that are considered as one of the most.sophisticated and technologically advanced parts in the market. Not only does it produce power. It ensures that it maintains its reliability as well.

The company offers a wide range of products, ranging from engine components such as camshafts, valve springs, pistons, connecting rods, cam gears, gaskets, limited slip differentials, exhaust systems, and more. Their parts are designed to perform well, not only on the streets, but on the track as well.

They have various race track records under their belt to prove it.

Purchase Tomei Products at Vivid Racing

If you want to upgrade the performance of your vehicle, then Tomei is the right brand for you. The company has consistently provided its customers with high-perfromance products that deliver what it promised. Using only the highest quality of materials available, which includes Titanium, they are able to develop parts that are strong and lightweight. This is the formula for a better performing engine. Visit Vivid Racing and check out their list of products that would fit your specific requirement.
