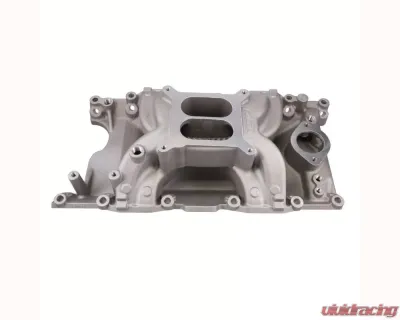

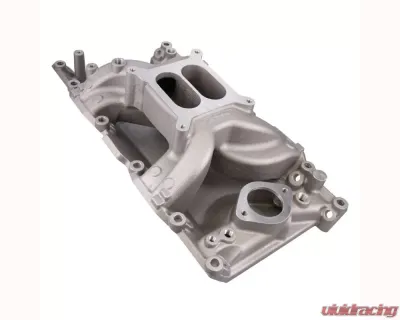

Top Street Performance Carbureted Satin Aluminum Dual Plane Air Gap Intake Manifold Chrysler Small Block V8 - 85026
Top Street Performance Carbureted Satin Aluminum Dual Plane Air Gap Intake Manifold Chrysler Small Block V8 - 85026 - Image 2 Top Street Performance Carbureted Satin Aluminum Dual Plane Air Gap Intake Manifold Chrysler Small Block V8 - 85026 - Image 2
TSP's dual-plane air gap intake manifold for the small block Mopar is ideal for high-performance applications. Its improved design is complimented by an open area under the plenum. This feature ensures less heat transfer from the engine, meaning the air/fuel charge will be cooler and produce more power and torque.

Producing power and torque comparable to single-plane manifolds, it retains the driveability and throttle response like other dual-planes and performs best between 1,500 and 6,500 rpm. It is cast from lightweight aluminum and features a relatively low profile for great hood clearance. Additional provisions include nitrous bosses, a rear water crossover with additional ports, and a square bore carburetor flange.

Specifications:
  • Engine Block Style: OEM Standard Deck
  • Carburetor Quantity: 1
  • Intake Style: Dual Plane
  • Basic Operating Range: 1,500 to 6,500 RPM
  • Manifold Height: 5.50"
  • Manifold Materal: Aluminum
  • Manifold Finish: Satin
  • EGR: No
  • Included: Water Port Block-offs, EGR Adapter, Throttle Bracket Adapter Plate Kit
Fitment:
  • CHRYSLER SMALL BLOCK V8
    • 5.2 L / 318
    • 5.6 L / 340
    • 5.9 L / 360
Note:
  • Designed to accomodate "LA" and "Magnum" series engines
  • Requires the use of 1975 or earlier water neck
