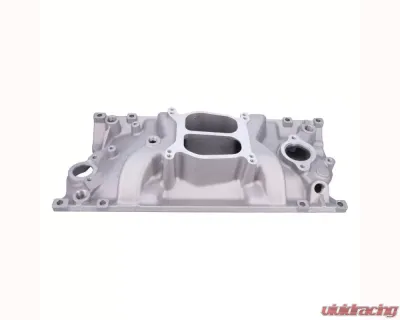

Top Street Performance Carbureted Satin Aluminum Dual Plane Intake Manifold Chevrolet Small Block Vortec 1996-2002 - 82007
Top Street Performance Carbureted Satin Aluminum Dual Plane Intake Manifold Chevrolet Small Block Vortec 1996-2002 - 82007 - Image 2 Top Street Performance Carbureted Satin Aluminum Dual Plane Intake Manifold Chevrolet Small Block Vortec 1996-2002 - 82007 - Image 2
TSP's dual-plane high-performance intake manifold for the Vortec small block Chevy is ideal for street performance applications. With a design that improves throttle response, as well as power and torque over a wide rpm range - idle to 5,500. It is cast from lightweight aluminum and features a low profile for ideal hood clearance. Additional provisions include dual distributor hold-downs, 4 corner water ports, and a choke block-off kit. Set up for spread bore carbs, this manifold comes with an adapter plate and gasket for use with square bore types.

Features:
  • Fits 1996 and later Vortec style Chevy small block engines
  • Features dual-plane design with a satin finish
Specifications:
  • Engine Block Style: OEM Standard Deck
  • Carburetor Quantity: 1
  • Intake Style: Dual Plane
  • Basic Operating Range: Idle to 5,500 RPM
  • Manifold Height: 4.25"
  • Manifold Materal: Aluminum
  • EGR: No
  • Included: Head Bolt Adapters, Choke Block-off Kit, Square Bore Adapter Kit
Fitment:
  • Chevrolet Small Block V8 Gen. I 5.0 L / 305
  • Chevrolet Small Block V8 Gen. I 5.7 L / 350
Note:
  • Fits 1996-2002 Chevy small block Vortec engines
  • As Vortec blocks do not have a water bypass, manifold is equipped with a provision to connect it to stock a water pump using a 5/8" heater hose
