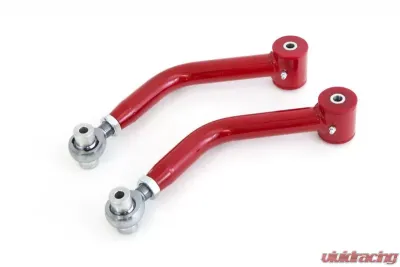

UMI Performance 1971-1975 GM H-Body Adjustable Upper Control Arms- Rod Ends - 5019-R
  • Features:
  • 1.250 x 0.120 DOM mild steel tubing
  • CNC machined and precision bent to match factory tolerances
  • 100% TIG welded construction
  • 4140 chrome moly threaded tube adaptors for improved thread durability
  • Aluminum CNC machined step bushings
  • Grease-able Energy Suspension bushings
  • Durable long lasting powder coat finish
  • Installation: Easy 1-hour bolt-on installation--no drilling required and uses OEM hardware.
  • High quality Teflon lined chromoly self lubricating spherical rod ends

UMI's rear upper control arms are a direct bolt-on replacement designed to minimize wheel hop and improve traction while helping track consistency. These control arms are constructed of drawn over mandrel mild steel tubing measuring 1.250" OD x 0.120" wall thickness, CNC machined and fully TIG welded for the utmost in strength. Control arms feature Energy Suspension polyurethane bushings; zinc plated steel sleeves and on-car grease-able grease fittings. Adjustability allows for correctly setting vehicle pinion angle. Pinion angle adjustments are a must when wanting to lower your track 60-foot times, increase traction and reduce unwanted wheel hop. The high quality Teflon lined spherical rod end allows for a bind free operation and allow the suspension to articulate correctly. The polyurethane bushing side is designed to be bolted to the chassis side of the vehicle helping to eliminate road noise and maintaining ride comfort. Note: The 1975 Vega Cosworth and other H-Bodies in 1975 used a panhard bar/torque arm set-up. If your vehicle is a 1975 model please verify your vehicle has rear upper control arms.

Features

  • Material: Steel
  • Color: Red
  • Mounting Hardware Included: No
  • Adjustable: Yes
  • Bushing Material: Polyurethane
  • Bushing Color: Red
  • Construction: Tubular
  • Finish: Red Powdercoated
  • Mounting Method: Bolt On
  • Pre Greased: No
  • Grease Fitting Included: Yes
  • Bushings Included: Yes
  • Grade Type: Performance
  • California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Notes:

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

UMI Performance Banner

Who is UMI Performance?

UMI Performance is an aftermarket company that specializes in building high-quality suspension parts. But before they were known as a suspension manufacturer, they manufactured precision parts for major brands such as Corning Asahi, Sony, and Bell+Howell. They may have shifted industries, but their dedication to creating quality products has remained the same.

Quality Products Made In The USA

All of their products are made in-house, which allows them to control every aspect of their products. 100% made in the USA, they can maintain their high standards and create suspension parts that can tackle any street, whether it be the fast corners of a race track or the bumpy road to your grocery store.

Parts Bred From The Racetrack

UMI Performance actively participates in various racing disciplines since most of their product engineers and sales team are racers. Because of this, they can test their products through real-life racing scenarios, which helps them gather data that can help improve their products.

Easy To Install Parts

Each product is designed to replace factory-installed parts without any significant modification. It is carefully measured to ensure that it would fit perfectly into the vehicle and comes with a step-by-step instructional manual, giving their customers a hassle-free installation experience.

Purchase UMI Performance At Vivid Racing

If you are in the market for high-quality suspension parts for your vehicle, then look no further, as UMI is the brand for you. To know more about UMI, visit Vivid Racing and check out their list of products that fit your specific need.

UMI Performance warrants all UMI Performance products for a period of two (2) years from the original date of purchase.

This warranty is valid against defects in materials and workmanship for the two (2) year warranty period. It is not valid against defect resulting from, but not limited to:
    Misuse and/or abuse, neglect or accident.
    Exceeding the item(s) design limits.
    Improper installation.
    Acts of God, including lightning, floods, earthquakes, fire or high winds.
    Damage in handling, including damage encountered during shipment.
This warranty is valid for the original purchaser of the UMI Product. Warranty is not transferable or valid for second ownership.

This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.

The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).

Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.

UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.

UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performance's products or the improper operation thereof or consequential damages arising from the products or use of the products

.UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.). By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.

This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.

All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
