- Features:
- Direct bolt-on with no drilling or welding required.
- Laser cut USA steel for clean and accurate components.
- Robust 3/16 steel construction.
- Same weight as factory GM mounts.
- Features factory a-arm mounting holes and 3/8 adjustment up and down for roll center
- Works with factory and aftermarket a-arms.
- Durable black powder coat finish.
- Fits factory style shocks that mount in the factory location.
- Designed and manufactured in the USA.
- Fitment Notes:
- Factory upper a-arms will not bolt into the upper adjustment hole
- UMI upper a-arms are able to use all adjustment holes

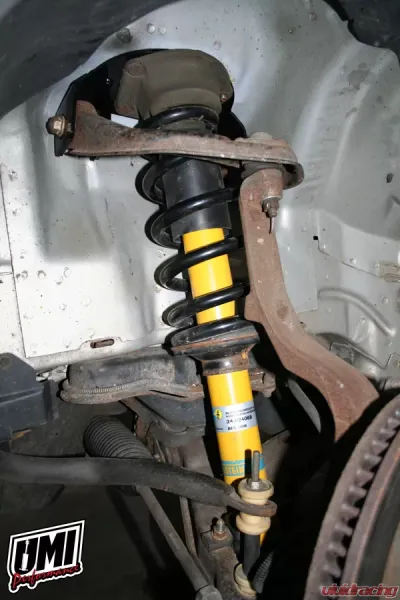

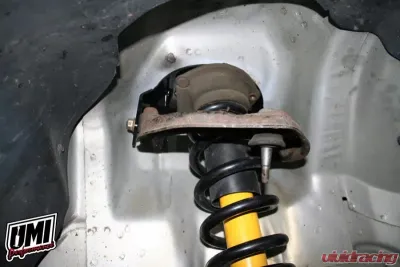

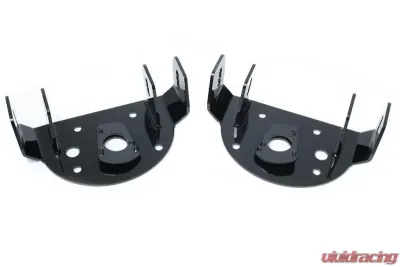

The UMI adjustable upper a-arm mount is a direct bolt in replacement of the original GM mount with some key improvements. The parts feature a unique fabricated design that allows for the mounts to be strong without adding any extra weight. The factory GM mount had a bowl shaped plate that was excellent at holding in water which quickly caused rust to the mount. UMI's fabricated mounts allow water to easily drain out from the strut bolt, which can extend the life of the front shocks. UMI's fabricated mounts are also supplied with several upper a-arm adjustment holes for fine tuning the vehicles front suspension. The original factory holes are located at the center and driver has the option to raise or lower the a-arm mounting point 3/8 of an inch. Adjustment holes feature the ability to dial in the front roll center height. Raising the roll center height increases responsiveness and improves camber gain which allows a less aggressive street alignment to perform well when cornering. For street and drag applications choosing the center hole places the a-arm in the factory location. As always, these products are extensively tested on UMI's test cars in some of the harshest highway and racing environments. This makes them an excellent upgrade for everyone from the street cruiser to the road course expert.
Features
- Material: Steel
- Color: Black
- Mounting Hardware Included: Yes
- Adjustable: Yes
- Attachment Type: Bolt On
- Mount Type: Bolt-On
- California Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Notes:
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
UMI Performance is an aftermarket company that specializes in building high-quality suspension parts. But before they were known as a suspension manufacturer, they manufactured precision parts for major brands such as Corning Asahi, Sony, and Bell+Howell. They may have shifted industries, but their dedication to creating quality products has remained the same.
Quality Products Made In The USAAll of their products are made in-house, which allows them to control every aspect of their products. 100% made in the USA, they can maintain their high standards and create suspension parts that can tackle any street, whether it be the fast corners of a race track or the bumpy road to your grocery store.
Parts Bred From The RacetrackUMI Performance actively participates in various racing disciplines since most of their product engineers and sales team are racers. Because of this, they can test their products through real-life racing scenarios, which helps them gather data that can help improve their products.
Easy To Install PartsEach product is designed to replace factory-installed parts without any significant modification. It is carefully measured to ensure that it would fit perfectly into the vehicle and comes with a step-by-step instructional manual, giving their customers a hassle-free installation experience.
Purchase UMI Performance At Vivid RacingIf you are in the market for high-quality suspension parts for your vehicle, then look no further, as UMI is the brand for you. To know more about UMI, visit Vivid Racing and check out their list of products that fit your specific need.
This warranty is valid against defects in materials and workmanship for the two (2) year warranty period. It is not valid against defect resulting from, but not limited to:
- Misuse and/or abuse, neglect or accident.
Exceeding the item(s) design limits.
Improper installation.
Acts of God, including lightning, floods, earthquakes, fire or high winds.
Damage in handling, including damage encountered during shipment.
This warranty shall be considered void if the warranted product is in any way altered, adjusted, tampered with or defaced.
The two (2) year warranty does not apply to normal wear and tear (the gradual deterioration of an asset which results naturally from use and/or age, i.e. bearings, bushings, etc.).
Non UMI manufactured parts are not covered or valid under this UMI Performance warranty.
UMI Performance cannot guarantee compatibility or performance of its products with other components used in conjunction with UMI Performance products.
UMI Performance cannot assume responsibility for any damages to UMI Products nor for claims for personal injury or property damage resulting from the use of UMI Performance's products or the improper operation thereof or consequential damages arising from the products or use of the products
.UMI Performance two (2) year warranty excludes incidental charges incurred by the end user in the event of breakage (towing, labor, installation, etc.). By their very nature, competition suspension parts are continuously expected to exceed to their limits (either by race or road use). UMI suspension components are designed to withstand intense race conditions, although it is impossible to control the quality of installation or the varying conditions in which they are used.
This warranty supersedes all other warranties and may only be modified by statement in writing, signed by UMI Performance owners/principals.
All Warranties implied by law, including the warranties of merchantability and fitness for a particular purpose, are hereby limited to the warranty period herein and shall expire at the end of such period.
