UMI Performance Single Adj. Monotube Front Coilover Kit GM F-Body 1993-2002 - 2053-600T
UMI's 4th Gen F-body competition coilover package is built to perform. Developed in conjunction with Sam Strano (14x national SCCA auto-x champion), the Afco built monotube dampers provide race winning performance in auto-x and road race while still providing an awesome street ride. The package includes rebound adjustable dampers with a properly tuned fixed compression valve code. The 40-position digressive rebound curve is designed for competition body and weight transfer control. Spring rates are 600 lb/in front Hypercoils. These rates and damping curves in conjunction with available 35mm/22mm sway bars encourage race winning performance. UMI's aluminum body shocks and coilover brackets are race-proven for three seasons now under punishing conditions. Ride height adjustment range is stock to 2-1/2" lowering. Every part of this competition proven package is 100% Made In USA.

Features:
  • UMI/Strano specific competition valving.
  • Road race, auto-x and street corner carver tested.
  • UMI bolt in double shear mounting brackets- competition proven.
  • Front upper fabricated shock mount removes rust-prone GM rubber shock mount.
  • Front shocks assembled with progressive rate bump stops.
  • Double bearing shocks for crisp response, zero deflection and high reliability.
  • Afco aluminum body shocks built in Indiana USA.
  • Rebound adjustable (digressive) monotube with Strano tuned valving.
  • 125 psi monotube provides quick reaction and fade-free performance.
  • Medium-firm fixed compression.
  • Competition ready yet still street/corner carver worthy.
  • 600 lb/in front Hypercoils standard. Built in Indiana USA.
  • Balanced for use with UMI or Strano 35mm/22mm sway bars.
  • Ride height from stock to 2-1/2" lowering.

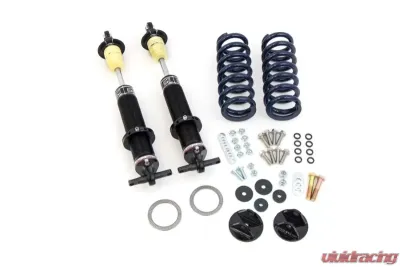

Kit Includes:
  • 2 coilover shocks
  • 2 springs with proper spring rate
  • Fabricated bolt in mounting brackets with hardware and thrust bearings for each shock
  • Spanner wrench for height adjustments sold separately.
Fitments:
  • 1993-2002 Chevrolet Camaro
  • 1993-2002 Pontiac Firebird
  • All models
