VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020
VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 10 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 2 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 3 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 4 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 5 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 6 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 7 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 8 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 9 VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 - CC37020 - Image 10

VADpro MFD28 GEN 2 2.8" Display LHD Toyota | Subaru 2012-2020 CC37020 | Vivid Racing

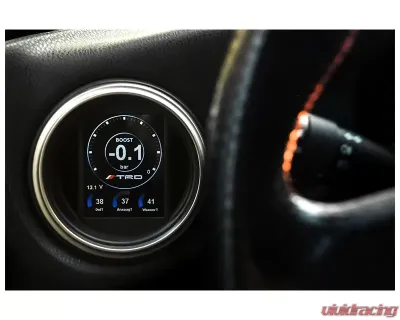

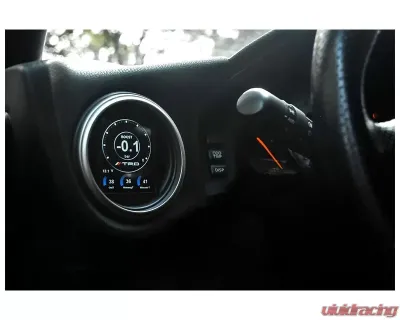

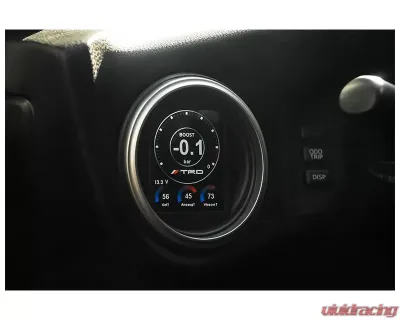

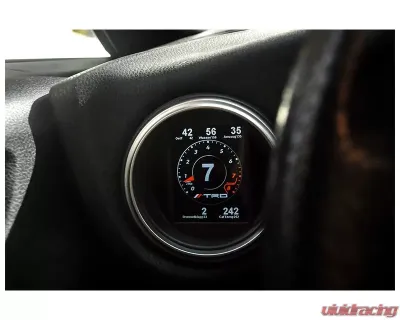

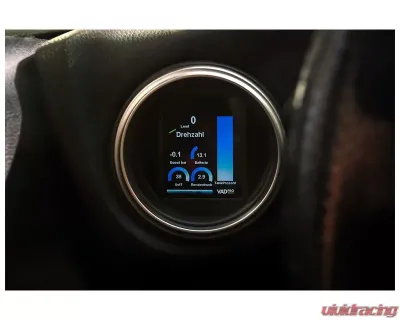

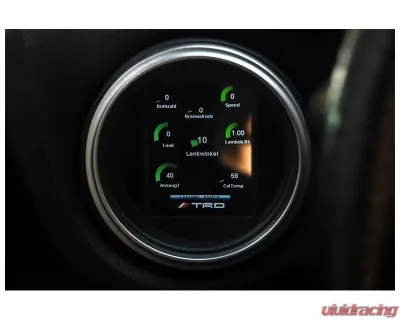

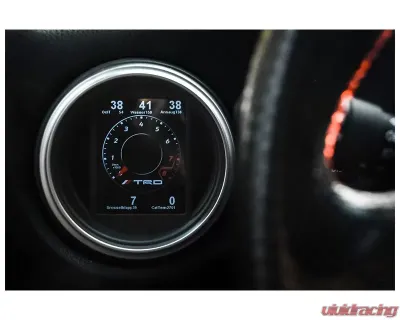

MFD28 GEN 2 2.8" OBD 2 Display for Toyota GT86 / Subaru BRZ

New GEN2 Multigauge for OBD2 values and analog sensorsWith OBD 2 cable and vehicle-specific bracket for Toyota GT86 / Subaru BRZ models air vent

Note: This display will be delivered with an OBD II adapter cable (1,50m). So installation is plug and play and all OBD 2 values which the engine control unit (ECU) outputs are displayed.

The brand new second Generation (GEN 2) displays offer:
  • Improved graphics with better anti-aliasing
  • Swipe instead of touch tip
  • The widgets are more precisely adjustable
  • New warning pop-up functions
Key Features:
  • 2.8-inch capacitive touch display with vehicle-specific bracket for the air vent
  • OBD 2 values can be displayed (adapter cable is included)
  • 8GB SD Card Memory
  • Up to 10 freely configurable display pages
  • Connection via OBD 2 carport
  • Two digital and four analog inputs for 0 - 5V sensors (for example oil pressure, fuel pressure, exhaust temperature (with adapter) and boost pressure)
  • Optional shift light function

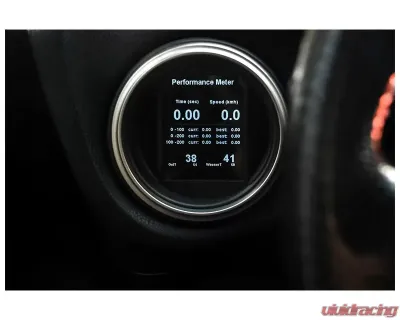

  • Performance Meter (measures for example the time from 100-200 km/h)
  • Individual minimum and maximum warning values
  • Popup function when values exceed or fall below
  • Screen brightness adjustable
Views:
  • 10 pages to configure freely- Up to 17 widgets per page
  • 10 different widgets (digital number, bar, speed, single pointer, log, Tableswitch, picture (from SD card), number, circle display, Haldex) - Widgets via Drag'n'Drop movable and resizable
  • Depending on the widgets color adjustment is possible
As an alternative, the online configurator is available. Here, the views can be created in advance and then copied to the SD card via the export function.

Performance Monitor
  • High-speed CAN integration gives you access to up to 64 vehicle sensors that you can display in real-time. Swap sensors on the fly using the 2.8"-touchscreen and set up custom ranges and warning pop-ups using the DSS software.
Diagnostics
  • Swipe down from any page to diagnose malfunctions on the fly. Can read, diagnose, and erase codes on engine, ABS, Transmission, ESP, TPMS, and other systems.
Data Logging
  • Easy access to log on demand and save to the internal SD card.
Plug & Play Installation
  • Precision designed and integrates perfectly with your vehicle's interior and retains the functionality of your car's vent.
Expandable Functionality
  • 4 Analog + 2 Digital inputs allow you to monitor third-party sensors and devices. Future licenses in development will unlock Haldex, Water Methanol, and Ethanol Fueling integration.
Customizable Screens
  • Comes with six pre-loaded dashboards. A total of ten can be customized using the included software and library of widgets.
Your Data, The Way You Want It!
  • Can display up to ten pages and has access to 64 of your vehicle's sensors. Use the touch screen to navigate between each page and choose which sensor you want to display. Need more customization? Using the provided DSS software, you can personalize your views by changing the graphics, sensors, and widgets. We've pre-loaded some examples on your Display to get you started.
Optional accessories:
  • A wide range of sensors, like oil- and water temperature, boost pressure, oil- and fuel pressure, etc...
  • Haldex license for GEN 1 and GEN 2 optional available
  • Serial adapter (VEMS + Ecumaster without CAN)
  • Other vehicle-specific integrations
What's in the box:
  • 2.8-inch display
  • Vehicle-specific bracket for vent pod
  • Cable set
  • OBD 2 adapter cable (2 m)
  • Fixing screws
  • 8 GB micro SD card
  • Micro SD Card Adapter
  • Quickstart Guide
Fitment:
  • Toyota GT86 2012-2020
  • Subaru BRZ 2013-2020
Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
