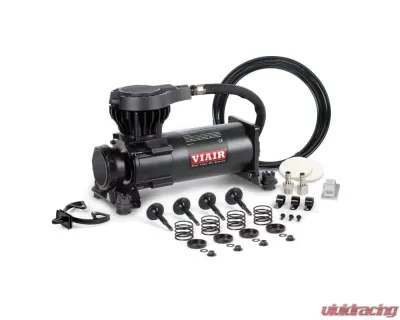

VIAIR 310 Stealth Series Single Compressor Kit - 31030
VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 7 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 2 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 3 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 4 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 5 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 6 VIAIR 310 Stealth Series Single Compressor Kit - 31030 - Image 7

310 Stealth Series Single Compressor Kit (12V, 100% Duty @100 PSI, 50% Duty @200 PSI, Sealed IP67) CE, RoHS, REACH

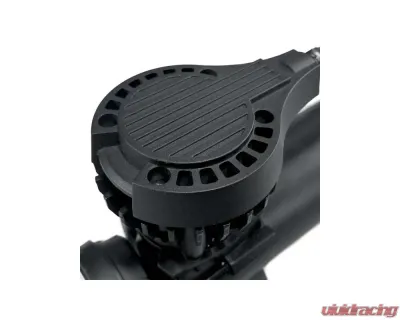

VIAIR's all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head, and a new metal filter assembly with an internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose, and black nickel plated check valves that eliminate the possibility of high amperage restarts.

Features:

  • Thermal Overload Protector
  • Check Valve

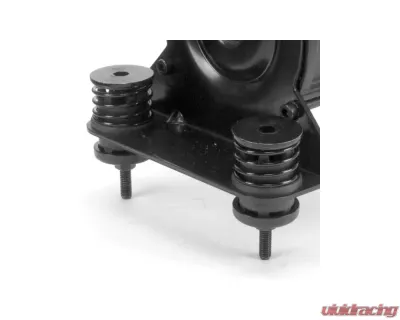

  • Spring Loaded Vibration Isolating Feet
  • Mounting Hardware
  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter

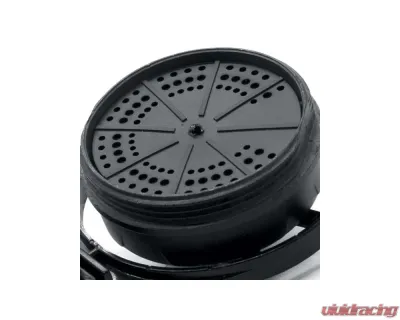

  • Remote Mount 6-Stage Air Filter/Muffler Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications:

  • 12 Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 23Amps
  • Ingress Protection Rating: IP67

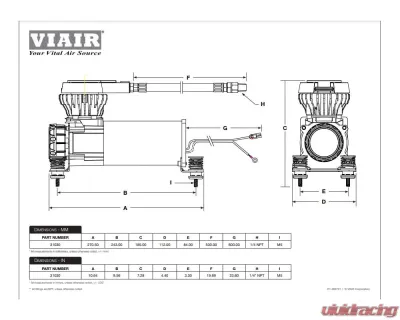

  • Dimensions: 10.7" L x 4.4" W x 7.3" H
  • Net Weight: 9.75 lbs.

Recommended Components:

  • 2.5 Gallon Tank (P/N 91028)
  • All Pressure Switches
  • All Pressure Switches w/ Relays
  • All Sealed Pressure Switches

Manual: CLICK HERE

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8" is 10 - 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 - 18 ft. lbs.

Other Part Numbers:
Viair #VIA31030

Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Viair Banner

Who Is VIAIR?

VIAIR is an aftermarket company that was established in 1998. The company specializes in producing high-quality air compressors and accessories. VIAIR has been working with 25 Fortune 500 companies that enable them to use their products in different industries such as the industrial, medical, aerospace, oil and gas, agriculture, and motorsport industry. Today, they are considered as one of the leading brands in their market segment.

Air Compressor Experts

VIAIR engineers some of the best compressors in the industry, which is why they are used as Original Equipment Manufacturer of many automotive brands. From mobile compressors, air gauges, air tanks, and pneumatic fittings, they have all the parts you need for your pneumatic system needs. Their products have become the standard for various 12-Volt to 24-Volt automotive applications worldwide.

Built To Be Tough

VIAIR has created products that can withstand whatever harsh conditions it is subjected to. May it be the most unforgiving deserts or the arctic climates, VIAIR has proven that it can deliver what it has promised to its customers - quality products that would last.

Purchase VIAIR Products At Vivid Racing

If you are in the market for high-quality air compressor products for your vehicle, then VIAIR is the brand for you. They have consistently delivered reliability and performance to all their customers, making them one of the favorite brands in the world when it comes to DC compressors and mobile pneumatic products.

To know more about VIAIR and what they can offer, visit Vivid Racing and check out their list of products that fit your specific requirement.

VIAIR Corporation warrants this product to the end-user, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from the provided date of purchase for the original purchaser of the product. This warranty does not cover abuse, operation in a manner inconsistent with the product's design, or damage resulting from exposure to the elements. If the defect is considered "under warranty", VIAIR will, at its option, repair or replace the product free of charge to the person who purchased the product.
