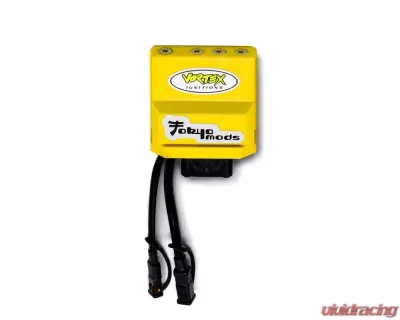

This unit comes pre-programmed with 10 Performance Fuel and Spark timing maps as well as having 3 additional switches for user trimming of Fuel in Lo, Mid and Hi throttle openings.
The ECU plugs directly into the bikes standard wiring harness and interfaces with all the standard engine sensors such as ECT (Engine Coolant Temperature), IAT (Intake Air Temperature), MAP (Manifold Absolute Pressure), TPS (Throttle Position Sensor), CPS (Crank Position Sensor) to adjust fuel and spark timing for optimum power delivery in all weather, altitude and load conditions.
Performance gains vary depending on Throttle and RPM points however typically gains are in Top End power and Bottom End throttle response is expected from the "Power" settings and a smoother more tractable or rideable power from the "Traction" settings.
We have done extensive work to include tune parameters which improve starting and almost eliminate the flameouts experienced with some EFI MX bikes. All of the development work is done for you! All that is left is for you to do is chose a setting that best suits your riding style or track conditions and ride!
The ECU is also fully programmable (Software not supplied) with parameters that are far more extensive than those found in any factory setting tools, such as Rev Limits, Throttle Enrichment and Decay time, Fuel timing, High Resolution Mapping, Dwell Time, Voltage Output and trim tables for cold starting, air intake temperature (IAT), Engine Coolant Temperature (ECT), Barometric Pressure, Battery voltage, etc…
In addition there is real time logging and graphing of many parameters (when combined with the ECU Software - not included)
All Vortex products are factory programmed with Performance Fuel and Ignition Maps developed through extensive dyno and track testing by Vortex Ignitions engineers with our network of race teams worldwide.
Vortex ECU's are a performance product and is designed for closed course competition use only. By purchasing this product you understand that the parts, installation and performance modifications are not emissions or noise compliant and are for closed course competition use only.
Features:
- Mapping for FMF 4.1 exhaust with spark arestor and Standard exhaust for Competition use
- Improved bottom end Power and throttle response
- Improved top end over Rev Power
- Power Ignition and Fuel Mapping developed for competition use with extensive dyno and track testing.
- Traction - Enduro maps for smoother throttle response and drive in technical conditions - Mud and Rocks
- Improved stall prevention
- Higher Rev Limits
- Advances Fuel Injection Timing for improved atomisation and response
- Dynamic Traction Control, Map Selection via the OE Handlebar Switch (Not avaiable for USA Models)
- On the Fly Map Selection via VORTEX Optional Handlebar Switch (Sold Separately)
- Pre Programmed with 10 Performance Fuel and Ignition maps - all the work is done for you!
- Instant Plug in Performance (replaces standard ECU with no mods to wiring required)
- Fuel Trim Switches adjust fuel mapping by +12.5% to -10% in Lo , Mid and Hi throttle bands
- Adjustments require only a screwdriver and integrated switches provide visual feedback.
- Simple to install with mounting hardware supplied (where required)
- V-Boost - Programmable Voltage Boost Circuit for maximising Spark Energy across the entire rev range
- Higher / Lower Rev Limit (where required)
- Robust design is fully encapsulated and O-ring sealed
- Diagnostic Flash codes - tests for sensor faults and flashes codes to OEM FI light
- Race Proven reliability
- Re Programmable (Software and Interface hardware not Included)
- Husqvarna FE501 2020-2023
