Wagner Tuning Cylinder Head Stud Set 18.8 Audi RS4 B5 Pro-Series 1998-2004 P101011610 | Vivid Racing

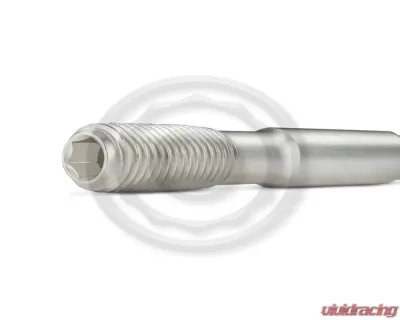

The Pro-Series 18.8 sets are high-strength stud bolts manufactured in Germany. A special steel is used which, after tempering, has a tensile strength of 1850 + N / mm². All threads are formed and not cut as usual. The so-called rolling of threads can increase the strength of the tooth flanks by around 30%. All Pro-Series products are supplied with a nickel coating or optional with a burnished protecting against corrosion in the long term, even under the toughest conditions. Pro-Series stud bolts have a hexagon socket drive on the head side for screwing in the stud bolts. Due to a cone on the engine block side of the bolt, these are not supported on the thread flanks when the nuts are tightened, but in the bore of the thread in the engine block. This support protects the threads when racing engines are frequently rebuilt. Pro-Series advantage over other manufacturers is the nuts and washers included in the set, these also have a tensile strength of 1850 N / mm². Replacing the original cylinder head screws with high-strength Pro-Series 18.8 studs. This is necessary when making large increases in performance, as the original cylinder head screws elongate during operation and the cylinder head can lift off. The Pro-Series 18.8 stud bolts with a tensile strength of 1850 N / mm² provide a solution to this. In addition, these stud bolts do not have to be replaced after dismantling, but can be reused.
Technical details:
- Manufacturer part number: P101011610

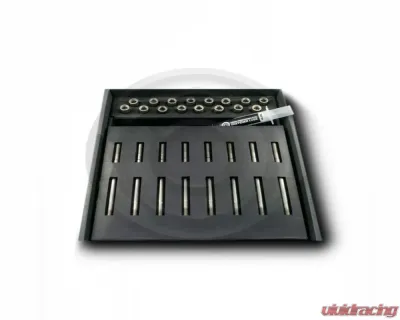

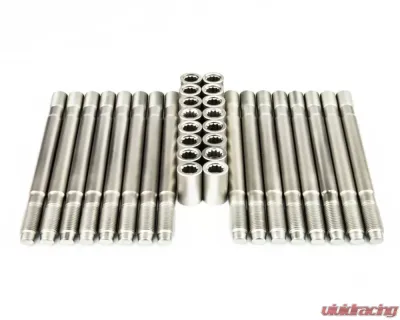

- Kit content: 16 stud bolt (M11) / 16 nut (M11) / assembly paste / assembly instructions
- Tensile strength: PS 18.8 steel / 1850+ N/mm² (270.000+PSI)
- Audi RS4 B5 2000-2002
- Audi S4 B5 1998-2002
- Audi A6 C5 1998-2004
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Wagner Tuning is a company that was founded in 2002. They specialize in aftermarket intercoolers and other high performance parts. Intercoolers are used to cool down the air produced by forced induction systems. A well-designed intercooler can increase the performance of an engine by simply lowering the air coming from the compressor before it goes inside the engine. Today, Wagner is a globally recognized brand with over 3000 network dealers worldwide.
Germany, Where The Best Are MadeThe company is based in Germany where they develop, design and manufacture their parts. They use advanced design software and measuring tools to produce parts with the highest precision. German ingenuity is evident in all their products. Hence, the reason why they are highly sought after.
Wagner Tuning also produces specially-designed exhaust manifolds and y-pipes which are being used in racing due to their high performance output. They have products specifically designed for various sport-oriented vehicles from various vehicle manufacturers. They offer bolt on kits that let you install the intercooler without the need for any modification.
Purchase Wagner Tuning Products At Vivid RacingIf you want to further improve the performance of your supercharged or turbocharged vehicle, then upgrade your intercooler to Wagner Tuning. They are the leading experts when it comes to intercoolers and is trusted by multiple tuners, race teams and enthusiast globally. To know more about Wagner Tuning, visit Vivid Racing and check out their list of products that would fit your specific needs. You will never regret this choice.
Intercooler warranty is extendable to 4 years via product registration with the Manufacturer.
No warranty claim will be considered unless you can produce a verifiable invoice in your name.
Items must be returned for inspection prior to any warranty repair or replacement being authorized.
Any items which have been amended or modified from their original specification will void the warranty.
We accept no claim for labor under any circumstances.
To make a warranty claim contact us by emailing info@wagner-tuning.uk
