Wehrli Custom Fabrication - WCFab RCLB/CCSB/ECSB 60 Inch Traction Bar Kit Bengal Red Duramax 2020+ WCF100826-BR | Vivid Racing

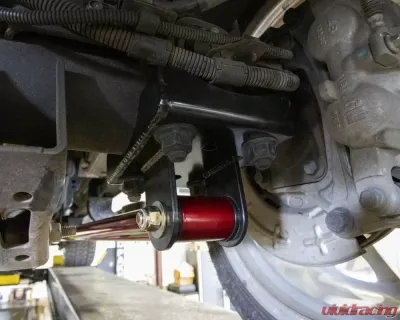

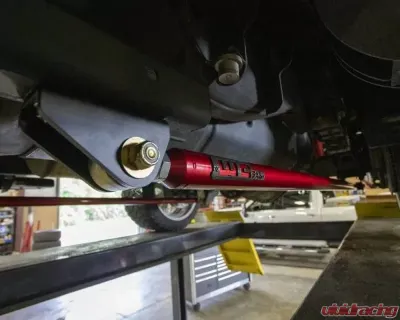

Traction bars are a necessary upgrade when increasing the horsepower on your diesel truck or towing heavy to prevent the axle from twisting which can lead to broken u-joints, pinion yokes, driveshafts, and even twisted axle housings. Our traction bar brackets bolt on to the bottom of the axle tube via the axle u-bolts and weld to the frame on the front end.
We use a high quality RockJock rebuild-able and grease-able Johnny Joint heim connection at the frame to allow for adjustment of torsion on the axle or if you raise/lower the rear of your truck. At the axle connection we use a heavy duty Poly Urethane Bushing for decreased noise and vibration which is common complaint if a solid heim is used on both ends.
Grade 8 hardware connects the bars to the mounts on the frame and axle. We complete our traction bar kit with our professional in house powder coat process in your color choice and comes standard with a epoxy Primer base coat before the final color which increases corrosion resistance by more than ten times compared to just your standard powder single coat application.

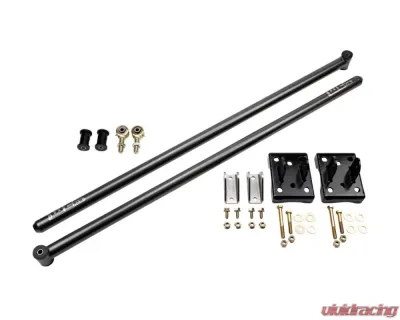

Features:
- For Regular Cab Long Bed, Double Cab Short Bed and Crew Cab Short Bed Models
- Lifetime Warranty against bending or breaking (to original purchaser)

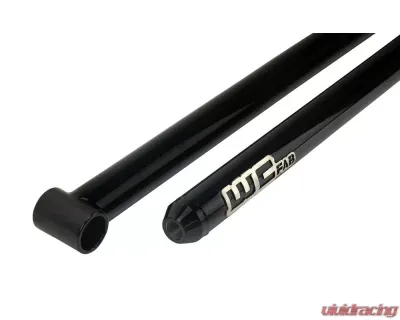

- 60 inch Heavy Duty Bars
- Poly Bushings
- RockJock Johnny Joints
- Frame side bolt (CCSB only) or weld on mounts
- Axle side bolt on mounts
- Grade 8 Hardware
- Powder Coating with epoxy primer base coat
- GM HD Trucks 2020+
- This kit includes 60 inch long bars for Regular Cab Long Bed, Extended Cab Short Bed and Crew Cab Short Bed Models
- 100 percent bolt on DIY installation option for Crew Cab Short Bed models
- All other cab and bed configurations require frame modification and welding for proper installation
- Welding front mounts on all competition applications is recommended for maximum strength
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Wehrli Custom is an aftermarket company that was founded back in 2010 in Sandwich, Illinois. Starting in a two-car garage, they developed performance parts aimed towards various motorsport enthusiasts. With their experience around ATVs, dirt bikes, truck racing, and snowmobiles, they saw the opportunity to create parts that would help improve their ride without spending too much.
Today, the company grew to be one of the most recognizable brands in the motorsport industry and is sought after by racers and enthusiasts everywhere.
Quality Made ProductsThe company creates some of the best products and is known for its high-quality finishes. It is possible thanks to their powder coat shop that includes elevated temperature-resistant ceramic coatings and two curing ovens. They also have a CNC mill and lathes to help create those accurate and precise cuts.
With the best tools at its disposal, coupled with a team of dedicated enthusiasts, Wehrli Custom could cement its position as one of the leading brands in its segment.
Your High Performance Go ShoppingWehrli Custom specializes in high-performance diesel upgrades and custom metal fabrication. They offer a variety of parts and upgrades for various diesel engines such as Duramax, Powerstroke, & Cummins Diesel trucks.
They offer turbo kits and custom performance parts that are custom fabricated and made in the USA. It guarantees that you only get the best products every time,
Purchase Wehrli Custom At Vivid RacingIf you are in the market for high-quality performance parts for your vehicle, then Wehrli customs is the brand for you. To know more about them, visit Vivid Racing and check out their list of products that fit your specific needs.
