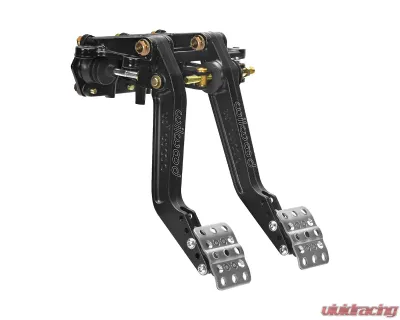

Wilwood Adjustable Dual Pedal Brake Offset Clutch Forward Swing Mount 6.25:1 - 340-16350
Adjustable ratio balance bar brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.

Features:
  • Material: Aluminum
  • Finish: Black E-coat
  • Mount Loc: Swing
  • Mount Facing: Forward
  • Balance Bar: Yes
  • Pedal 1 Ratio: 5.5-6.25:1
  • Pedal 2 Ratio: 5.5-6.25:1




Proposition 65

⚠ WARNING: Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov

Wilwood Banner

Who is Wilwood?

Willwood Engineering Inc. was formed back in 1977 by Bill Wood. The company is known for manufacturing a high-performance disc brake system.

Throughout the years, the company has continuously improved itself, along with the ever-changing advancement in-vehicle technology.

Today, the company had extended its wheel designs to supply brake components for various vehicles, including agricultural equipment, utility vehicles, motorcycles, four-wheelers, military vehicles, and even snowmobiles.

A Brake for Every Need

Wilwood has an extensive inventory of brakes parts for various vehicles. With over hundreds of brake calipers, master cylinder, and rotor designs, not to mention the tons of brackets, fitting, brake lines, and valves, it has the right kit for every vehicle application you can think of.

Engineered to Perfection

The company entails the most advanced technology and software in designing and manufacturing its products. They use a finite element analysis and multiple testing procedure such as a dynamic and cycle test that helps them replicate real-world conditions and adjust their design accordingly, making the necessary correction even before they manufacture the actual product

Using only the finest materials available, they can create a product that meets its clientele's expectation whether it's for street use or for race application.

Wilwood has also been ISO Certified, making it compliant to all mandated processing procedures set by the regulatory board.

Purchase Wilwood Products at Vivid Racing

Your brakes are the most important component of your car. It is easy to make your car fast, but you have to make sure you can equally make it stop as well.

Wilwood has the right product for you. With safety and quality at its core, they are the product you can surely trust. Visit Vivid Racing and check the list of parts that would fit your specific needs.
