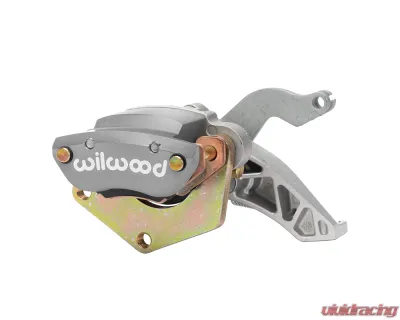

Wilwood Left Hand Anodize MC4 Mechanical Caliper - 120-17477
Wilwood Left Hand Anodize MC4 Mechanical Caliper - 120-17477 - Image 2 Wilwood Left Hand Anodize MC4 Mechanical Caliper - 120-17477 - Image 2
Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Available calipers are built to accept rotors from .310" to 1.10" thick by part number, with an 11.00" - 14.00" diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields.

Engineered with noise-dampening features for quiet, rattle-free operation, the MC4 sliding caliper includes a steel bracket for convenient mounting. Available in both right-hand and left-hand construction, the caliper's lever cartridge can be clocked in three positions for optimum positioning and ease of cable routing. The 1.19" aluminum piston is fully dust booted to keep moisture and debris out. Each caliper is fitted with a cable return spring, and the mechanical lever accepts a .310" diameter barrel-ended parking brake cable*. The convenient manual adjuster requires no special tools, allowing incremental adjustment to compensate for pad and rotor wear. MC4 calipers are available with either black, silver or red high-gloss, high-temp, brake fluid resistant powder coat and feature Wilwood's signature logo.



Specifications :
  • Rotor Compatibility :
    • Rotor Width (in) : 0.81
    • Maximum Rotor Width (in) : 0.81
    • Minimum Rotor Width (in) : 0.7
    • Maximum Rotor Diameter(in) : 14
    • Minimum Rotor Diameter(in) : 11
  • Brake Pad Specifications :
    • Brake Pad Type 1 : 6407
    • Brake Pad Type 2 : N-A
    • Brake Pad Type 3 : N-A
    • Total Pad Area (in²) : 1.7
    • Total Pad Volume (in³) : 0.26
    • Mount :
  • Piston Specifications :
    • Piston 1 Bore (in) : 1.19
    • Piston 2 Bore (in) :
    • Piston 3 Bore (in) :
    • Total Piston Area (in²) : 1.11
  • Mounting Specifications :
    • Mount Type : Floating
    • Mount Side : Left Hand
    • Mount Center(in) : 4.75
    • Mount Hole Size(in) : 0.67
    • Mount Height(in) :
    • Inlet Thread Size : N-A
  • Duty Rating & Material :
    • Material : Cast Aluminium
    • Weight(Lbs) : 3.3
  • Colors & Finish :
    • Color : Anodize
    • Finish : Type III Anodize Powder Coat
