Toe in/out: If Ackermann is 0 or negative then toe is 2mm out. If Ackermann is positive then toe is 0
Camber: -4,5 +/-0,5
Caster: 4,3 +/-0,5

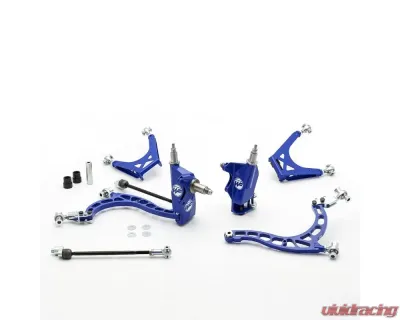

By installing Nissan S14 rear subframe to your Nissan Skyline you can install the Wisefab Nissan S14 Rear Suspension kit. to your Nissan Skyline
- 65 degrees of lock, parallel steering.
- You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
- Ackermann adjustment kit included.
- Adjustable lock stopper.

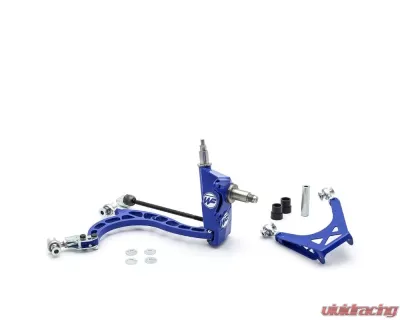

- One piece design.
- Lower 2 piece arm is replaced with one piece design to increase system stiffness that is needed for high lock.
- Higher roll center (RC).
- On Wisefab Nissan R-chassis knuckle, both joints are dropped, which brings the front RC up on lowered car, providing higher roll and better camber gain.
- Very good camber control and minimal bump steer with high steering angles
- On drift cars the dynamic camber and bump steer is much more important than static. With Wisefab kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.
- Steering jacking control.
- During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry so that it doesn't cause any handling issues.
- Consistent and predictable self-alignment torque.
- Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.
Product Details:
- Requires S14 hubs.
- This kit assumes car to have coilovers to have enough clearance.
- Ride height is designed to be ~80mm from front subframe to ground.
- Dependent on rim width and ET, wider fenders or fender flares would be needed.
- Inner wheel wells do not need to be modified with tire diameter up to 635mm (225/45R17, 235/40R17, 235/35R18, 255/30R18 etc).
- Minimum rim diameter is 17".
- Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
- The kit is designed and manufactured the way that after installation and toe adjustment it's ready to use right away.
Fitment:
- Nissan R33 1995-1998
⚠ WARNING:
Cancer and Reproductive Harm
https://www.P65Warnings.ca.gov
Wisefab is a company, that manufactures racing suspension kits for track and drift cars. Everything is engineered and made in-house in the EU. You should also know that all of Wisefab products are designed with racing in mind and they make championship-winning suspension parts. For over 7 years they have been giving drift car drivers across the globe advantages over their opponents. When it comes to drifting, Wisefab has produced angle kits for over 7 years. Giving drift car drivers advantages over their opponents by providing them with factory team-level suspension solutions for a reasonable price. Wisefab has all the main chassis covered such as Nissan S13/S14/S15, Nissan 350/370Z, BMW E46/E92/E82, Toyota Supra/GT86. Providing lock all over the world
When it comes to tracking, Wisefab designs high-performance suspension parts for your Time Attack, Hill climbing, or Autocross car. Their products offer better kinematics for lowered cars, improved handling and grip with minimal bump steer. Also, they offer a faster steering ratio and higher roll center. Wisefab suspension kits are fully adjustable and designed purely for racing with added lightness and a wide adjustment range
For rallying, Wisefabs makes strong and reliable rally suspension parts by Wisefab. Their products offer long-stroke suspension travel with better kinematics which improves handling and grip. Wisefab suspension kits are fully adjustable, easy to adjust, and are rugged designs that take the abuse of rally driving
What Makes Wisefab Products Special?Wisefab has long been known for providing the craziest steering angle on the planet. Most Wisefab kits provide around 65 degrees of steering angle and offer simple ackermann adjustment as an option. This means you can choose between parallel steering or altering the angle between the leading and trailing wheels to suit you. Fitting a Wisefab kit to your car will translate into it having much better handling, improved front grip, more precise steering, less tire scrub, and better feel during high speed drifting
You should also know that Wisefab rear suspension kits have had countless hours of R&D invested in them. The result is a totally re-engineered lightweight rear knuckle and suspension arm design. Roll center, camber gain, and toe gain are all fine-tuned to provide a significant increase in traction and lateral grip. Also, unsprung weight is vastly improved. All of these factors can provide a significant advantage in competition when in the right hands. The Wisefab rear kits have also been used with great success on the regular track and drag cars
Why You Should Purchase Wisefab Products at Vivid RacingRegardless of what styles or sizes you're interested in, the one thing you can depend on to come with every product order is the best buying experience in the business. From fitment help from our in-house wheel experts to shipping packages, we'll take care of you and your order every step of the way. We know how much of a financial investment you're making in buying these products, and in return, we'll deliver service and product that is second to none
At Vivid Racing, we simply love cars. Cars are our vice in life. We love the automotive community and love our customers who think like us. Vivid Racing ensures that they meet the customer?s expectations in terms of quality, size, and strength
Buy online or give one of our world-class professionals a call at 1-480-966-3040
