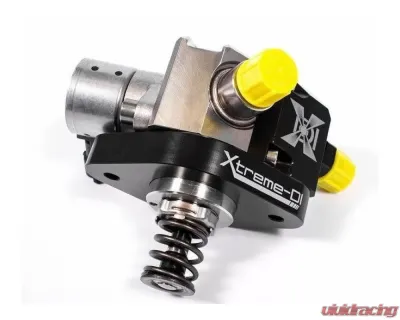

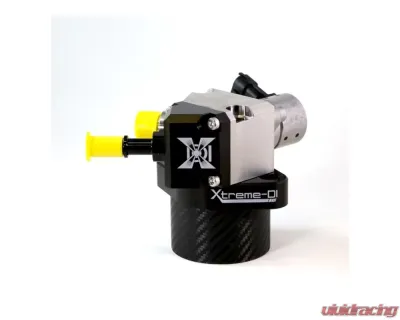

Xtreme-DI Direct Injection High Pressure Fuel Pump Upgrade Ford EcoBoost - XDI-EVO
Xtreme-DI Direct Injection High Pressure Fuel Pump Upgrade Ford EcoBoost - XDI-EVO - Image 2 Xtreme-DI Direct Injection High Pressure Fuel Pump Upgrade Ford EcoBoost - XDI-EVO - Image 2
Upgrade your stock fuel pump and unlock your engine's true potential with the?XDI?Ford Ecoboost High-Pressure Fuel Pump. This upgraded fuel pump opens the tap so to speak, allowing your engine to get the fuel it needs when tuned beyond stock performance. This is especially important if you've installed upgrades like a?Garrett Powermax Turbo?and a?Full-Race Intercooler.

Specifications:
  • Application Maximum Rail Pressure: 240 BAR / 3500 PSI
  • Fuel Compatibility: All Known Fuels, All Ethanol Blends
  • Electric Connector: Bosch Compact 2-Pin
  • Driver Profile: OEM
  • Mechanical Data Geometric Volume: 1.58CC / REV (depending on Cam Lobe)
  • Maximum Flow Rate: 200LPH (depending on Cam Lobe)
  • Housing Material: Stainless Steel Hard Coated
  • Aluminum O-Ring Material: Viton
  • Cam-Lobe: 4?4.4MM (same for 2.3EB Mustang and Focus RS)
Fitment:
  • Ford F-150 EcoBoost
  • Ford Raptor EcoBoost
  • Ford Mustang EcoBoost
  • Ford Edge EcoBoost
  • Ford Fusion EcoBoost
  • Ford SHO EcoBoost
  • Ford Focus ST EcoBoost
  • Ford Explorer ST EcoBoost
Note(s):
  • Some applications will have a pump option for the standard HPFP-35 Upgrade or the highest flowing XDI-Evo Pump.
